Removal & Installation: Removal

Disconnect the battery negative (-) terminal.

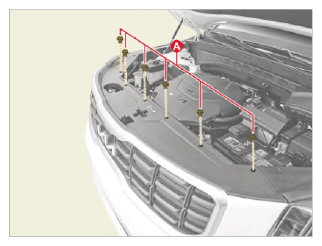

Remove the front bumper upper clips (A).

Courtesy of KIA MOTORS AMERICA, INC.

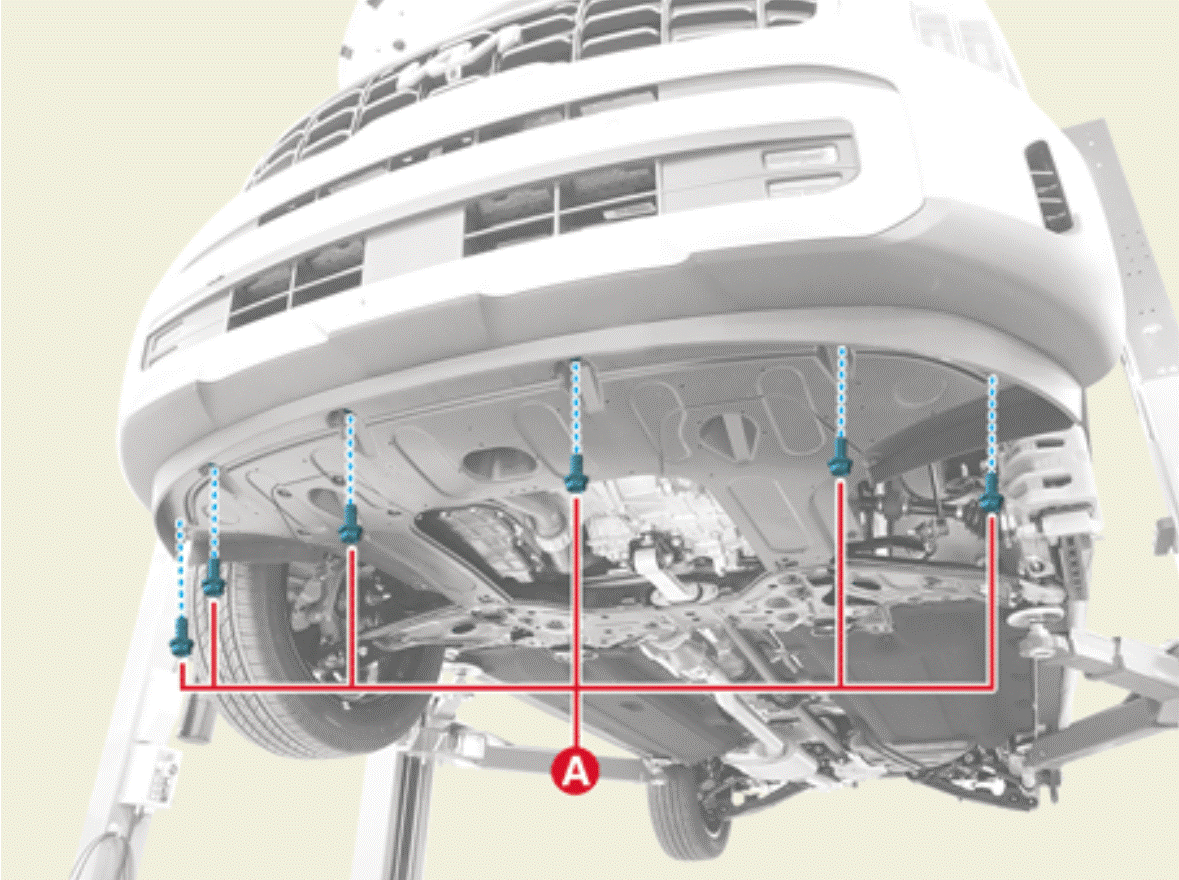

Remove the engine room under cover bolts (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

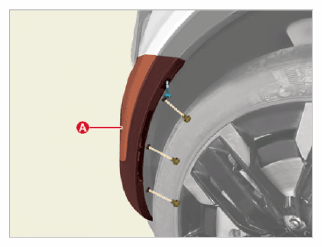

Separate the left and right sides of the front bumper (A) after removing the screw and clips.

Courtesy of KIA MOTORS AMERICA, INC.

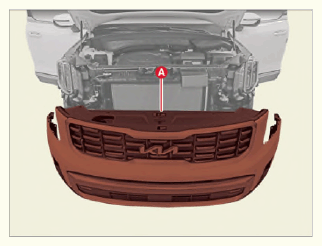

Remove the front bumper assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

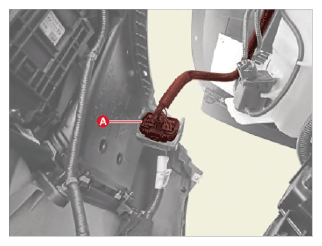

Disconnect the front bumper connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
