Disassembly & Reassembly: Disassembly

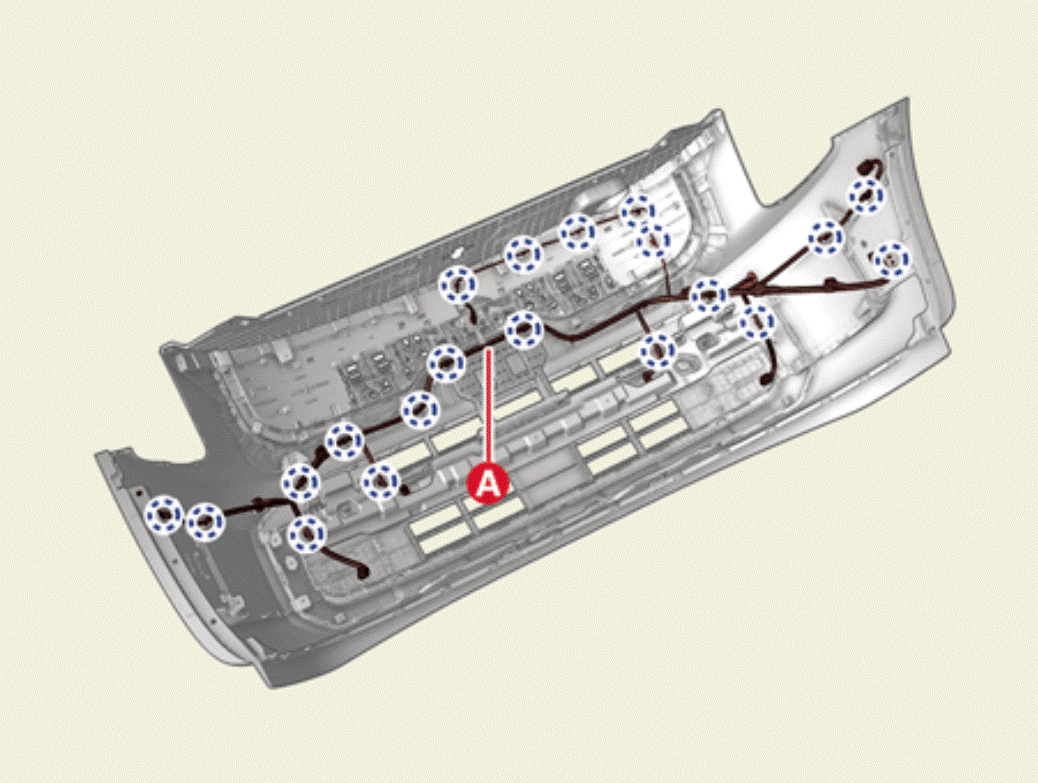

Remove the front bumper wiring harness (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

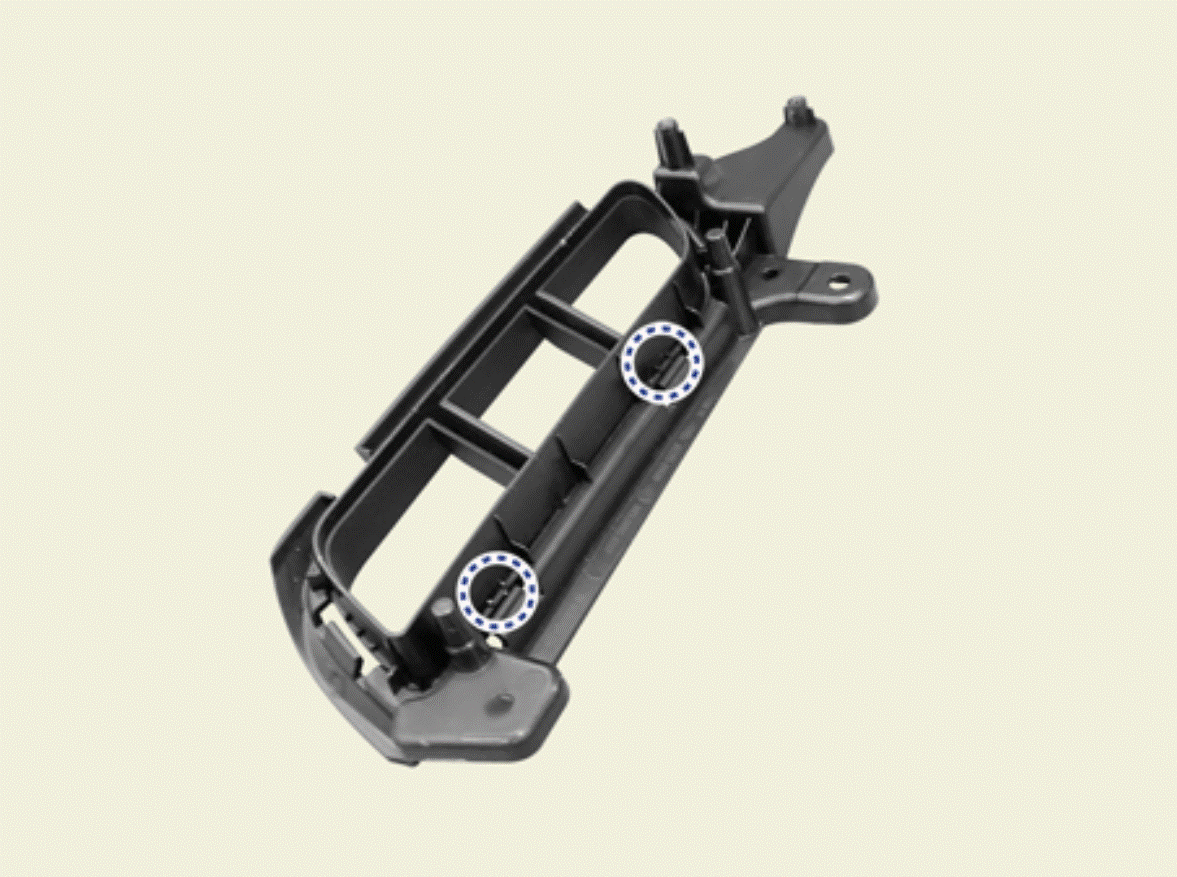

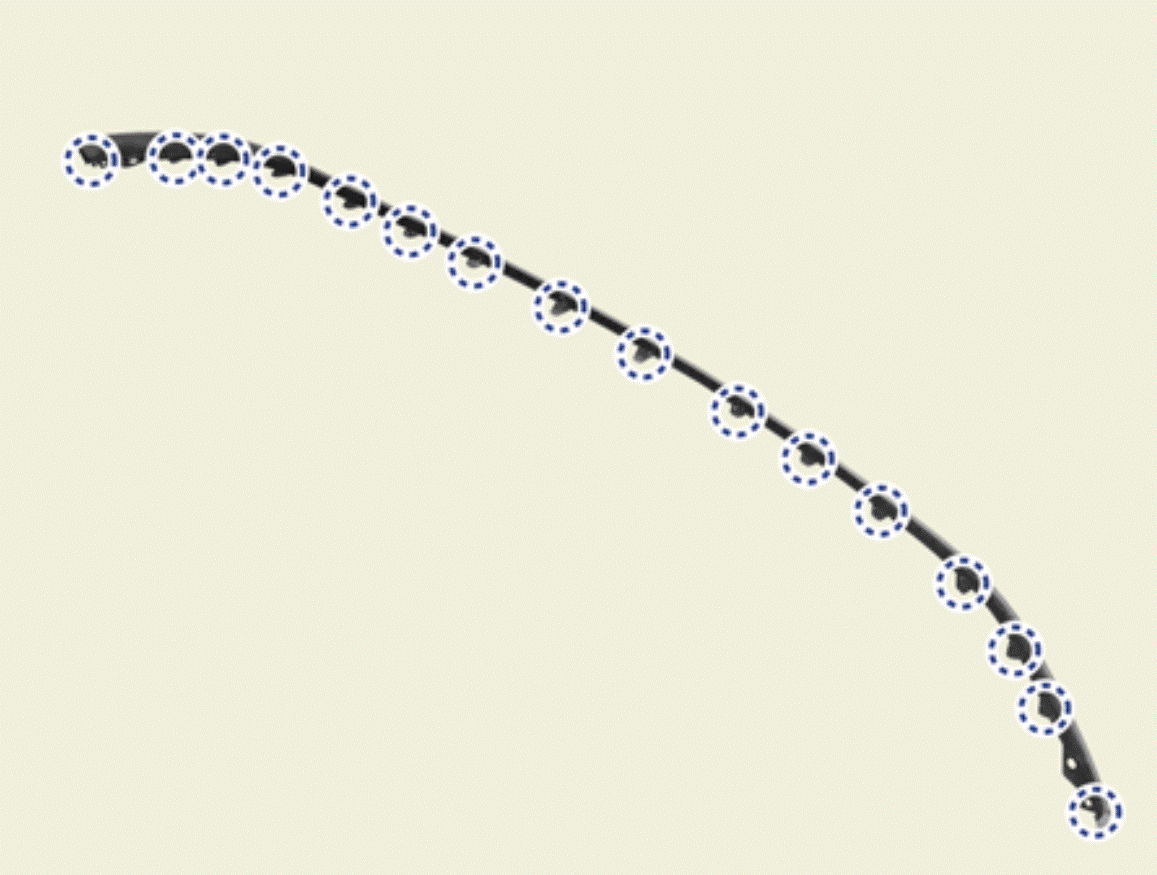

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

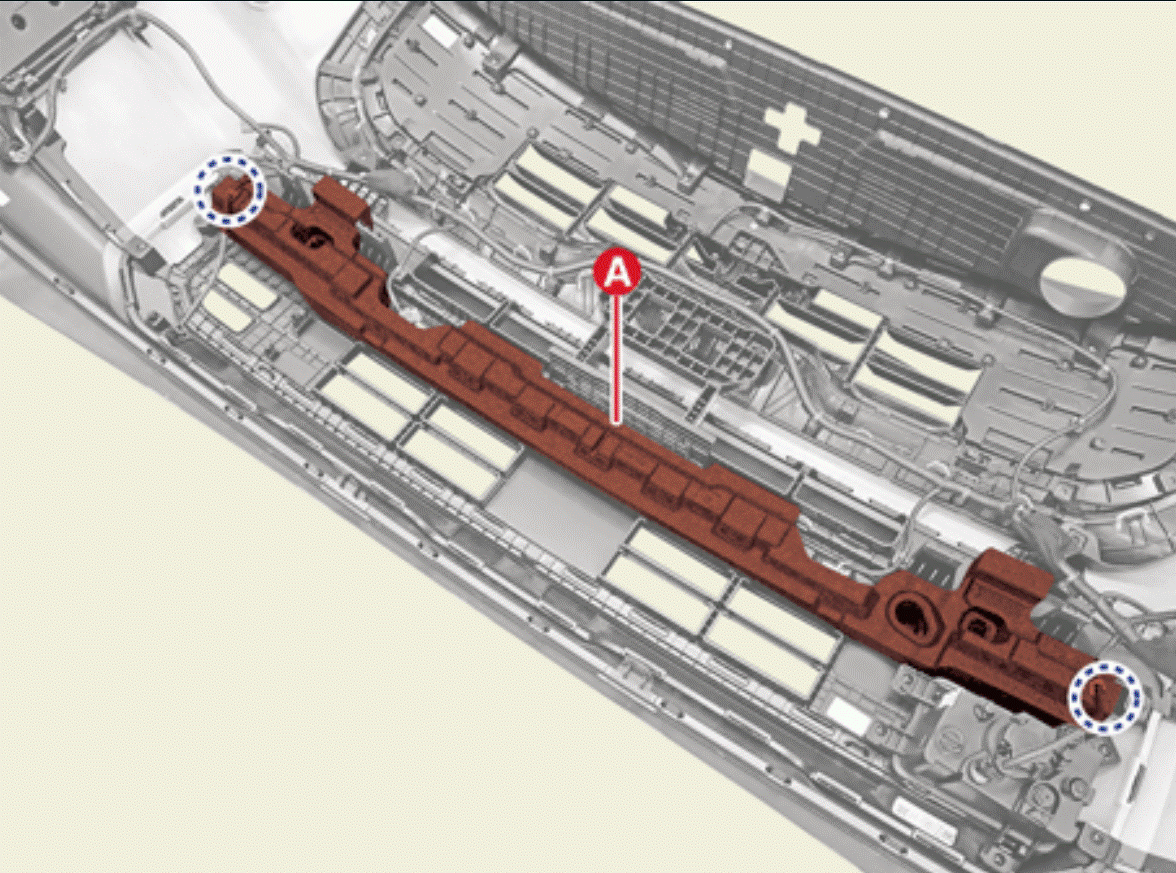

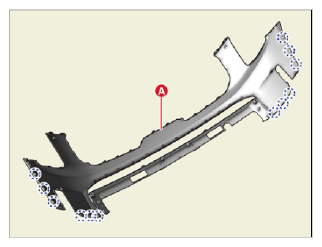

Remove the front bumper energy absorber (A).

Courtesy of KIA MOTORS AMERICA, INC.

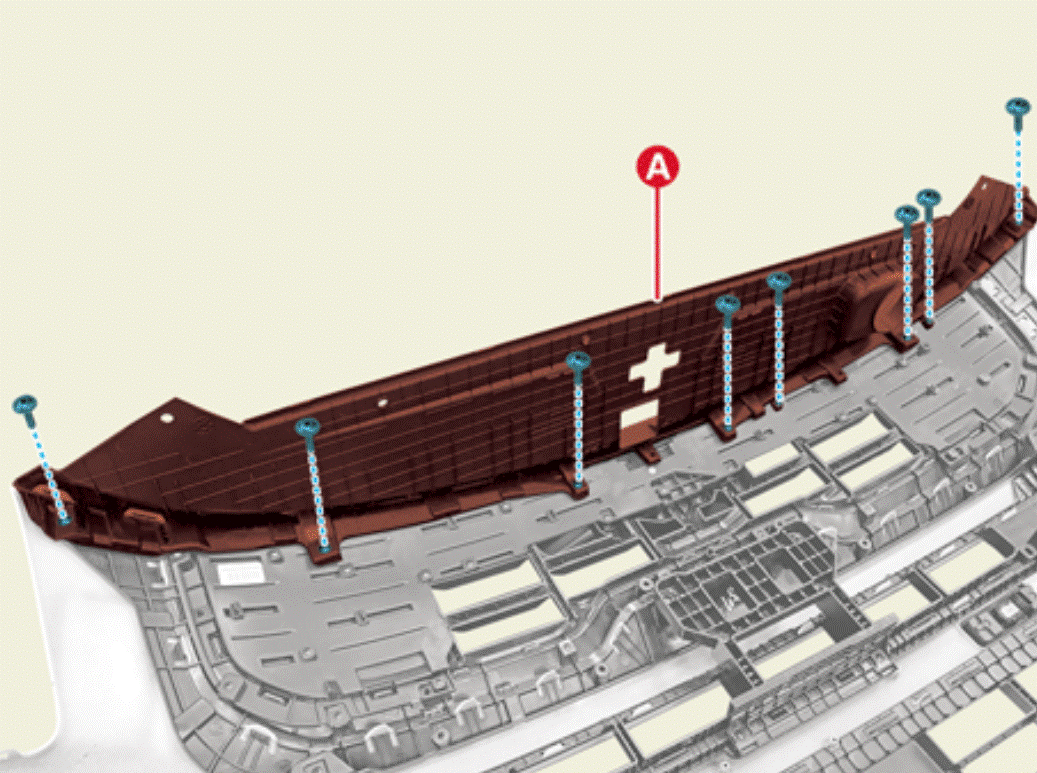

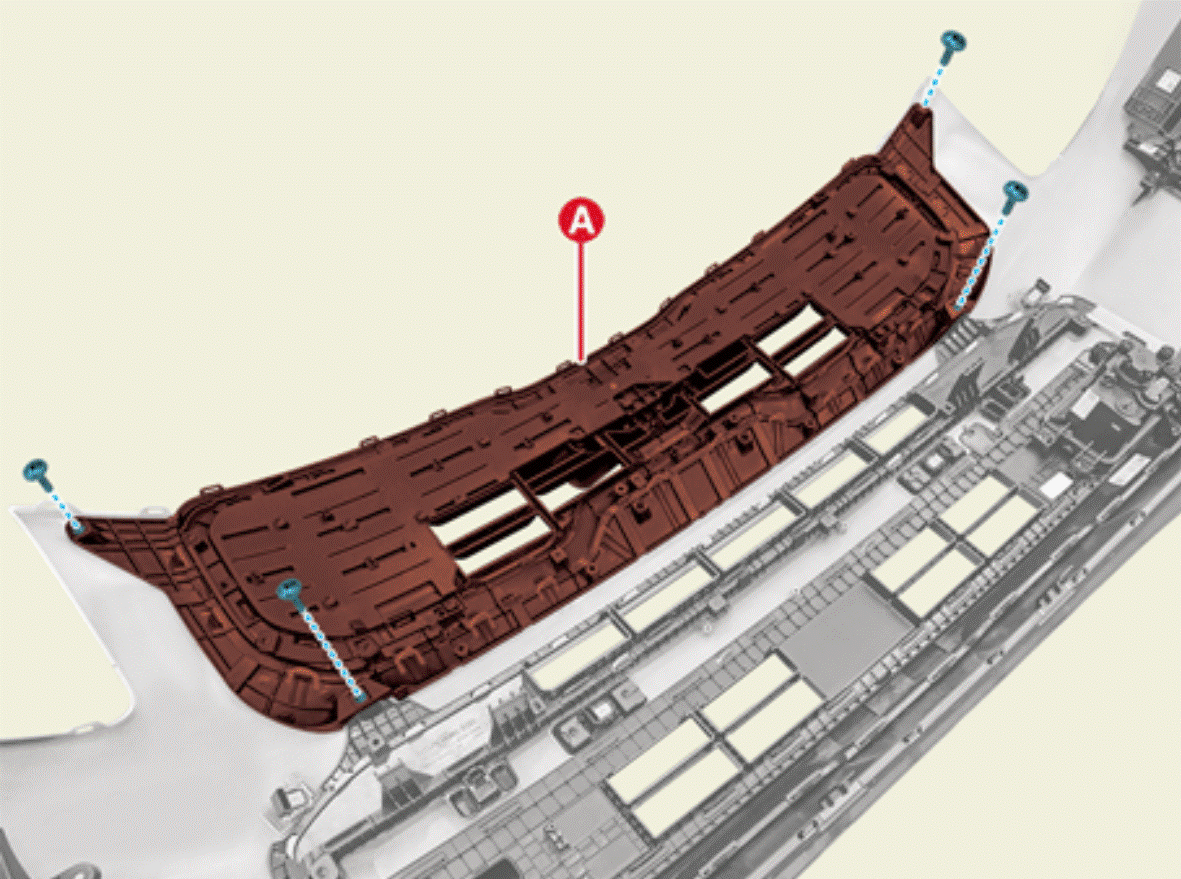

Remove the radiator grille upper cover (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

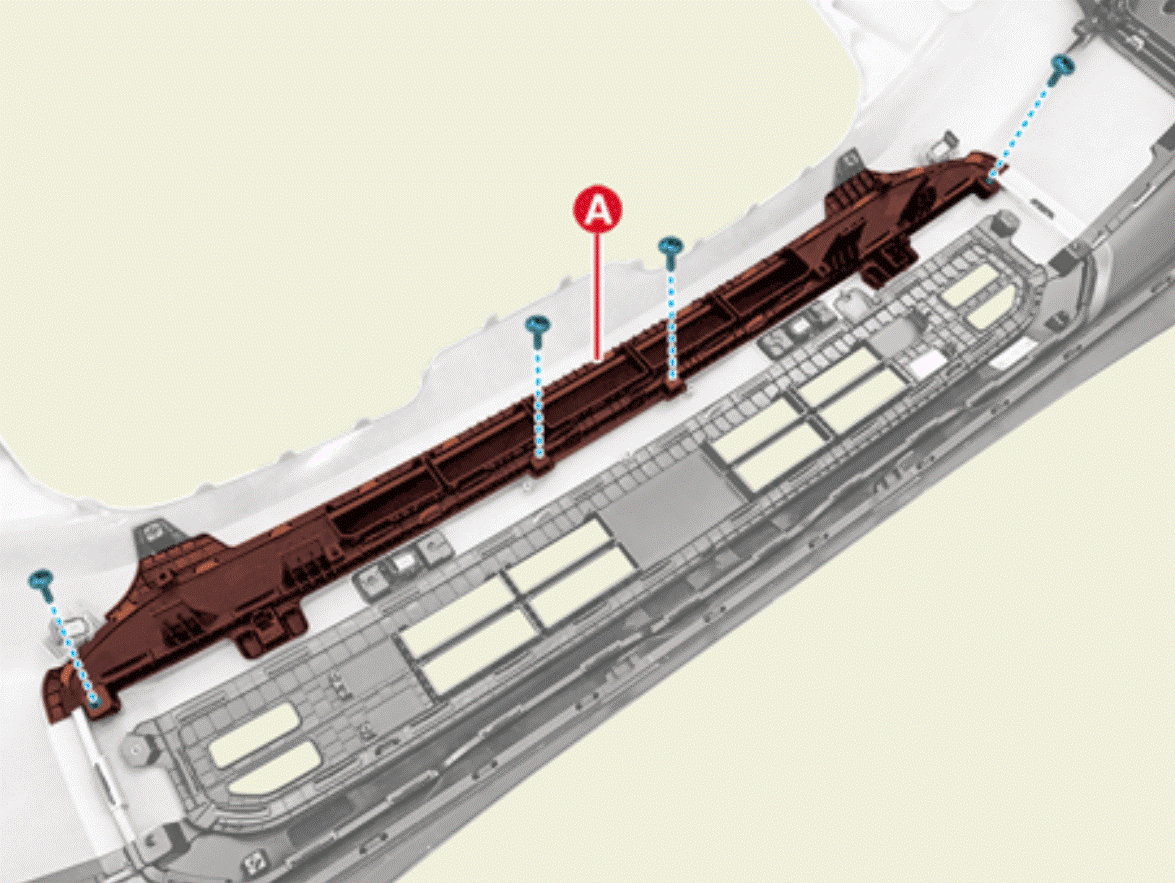

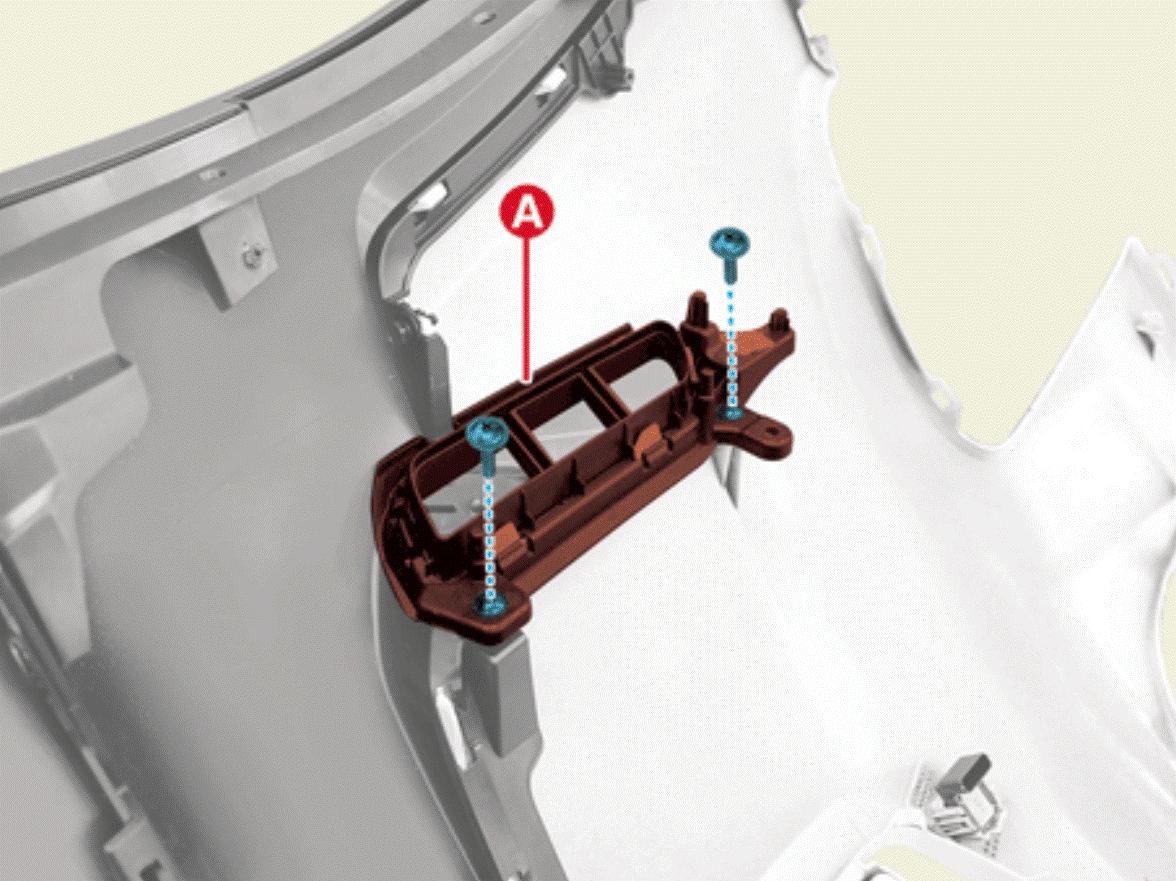

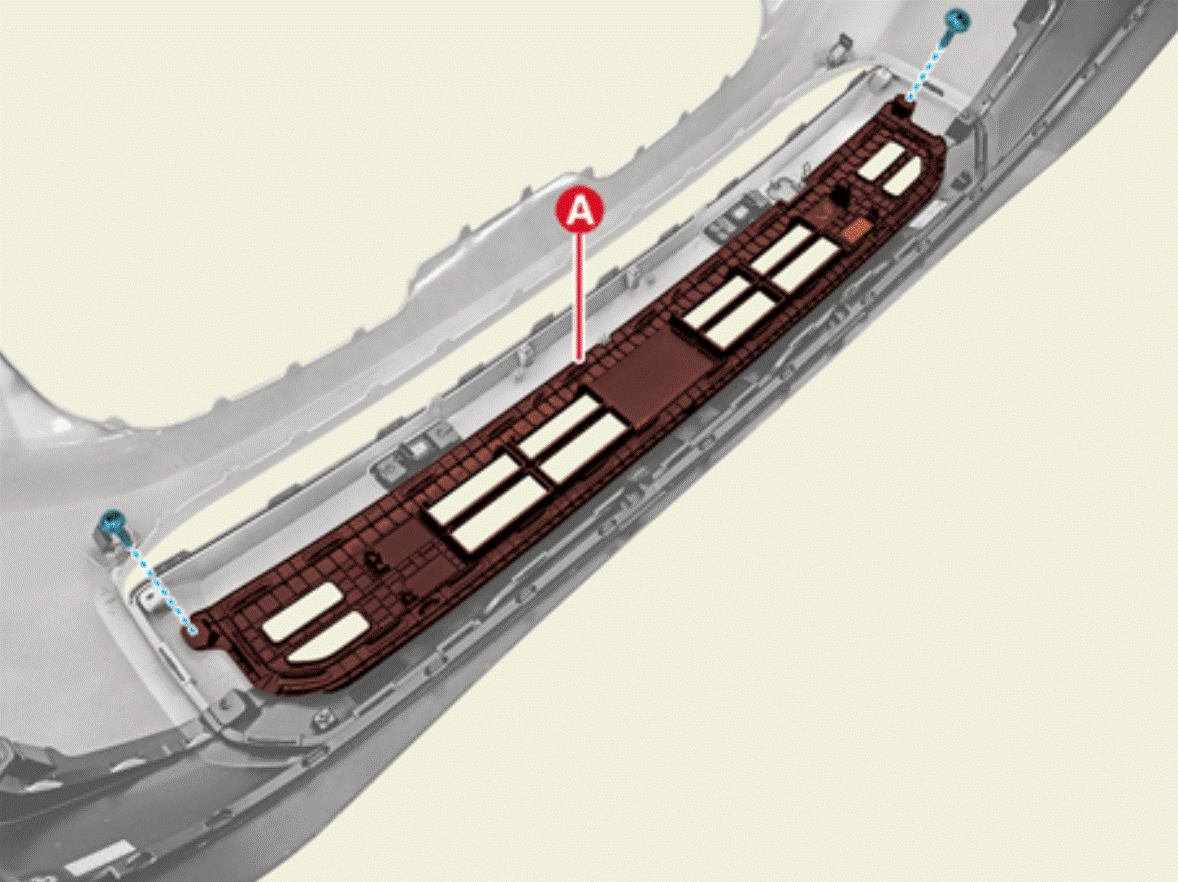

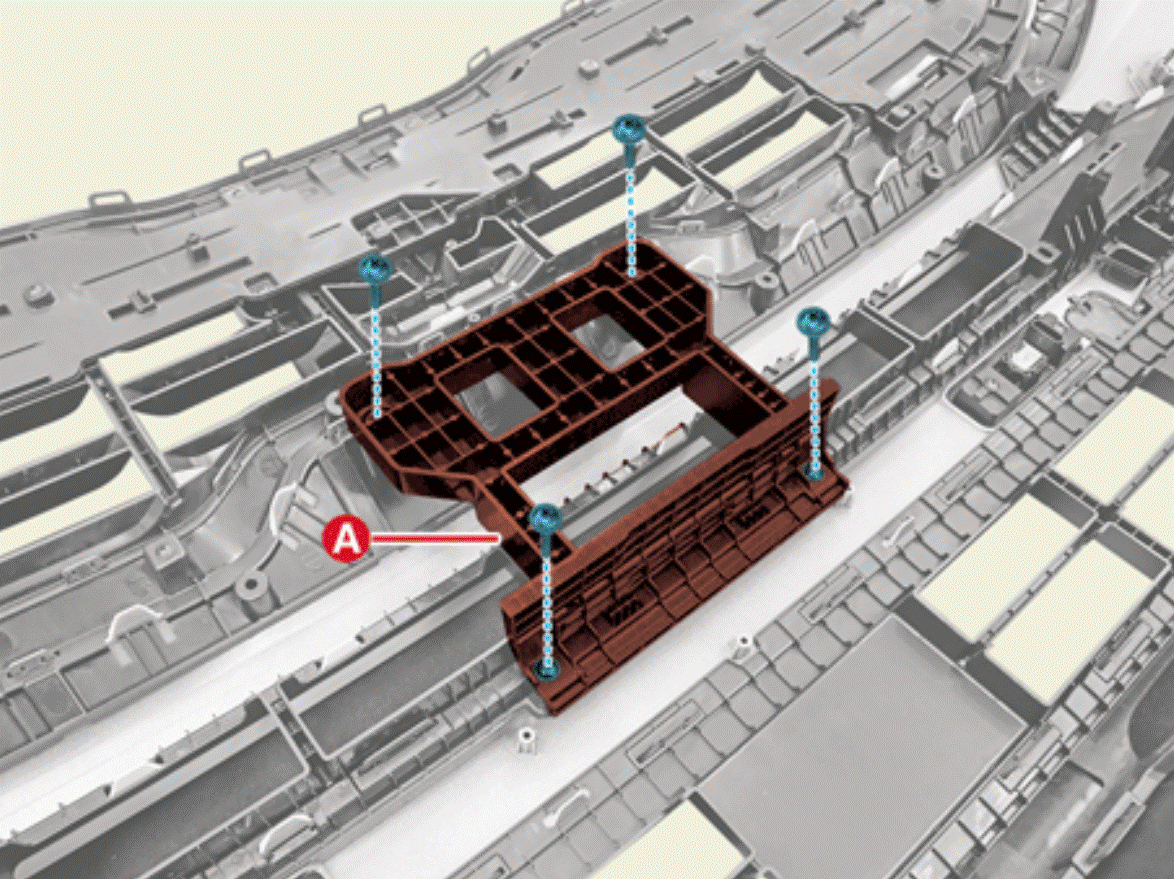

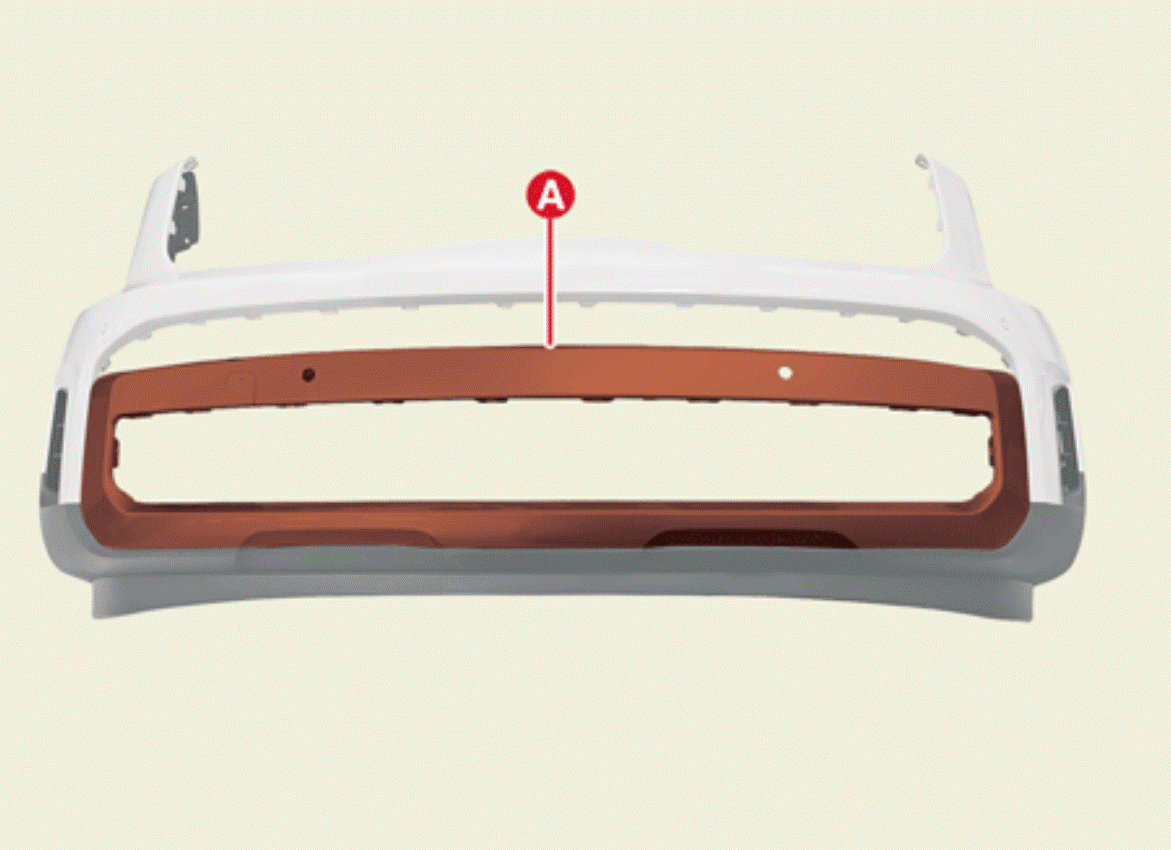

Remove the front bumper reinforcements No. 1 bracket (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

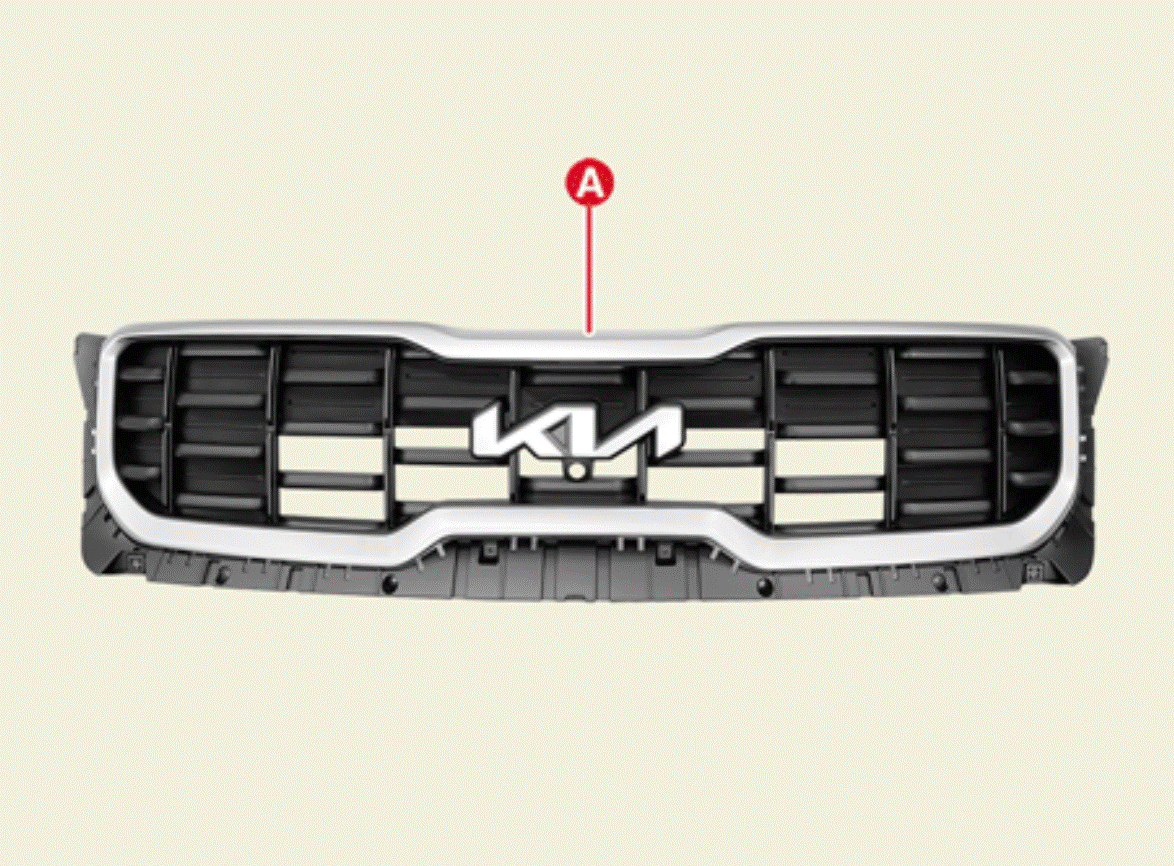

Remove the radiator grille (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the radiator lower grille (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper grille (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

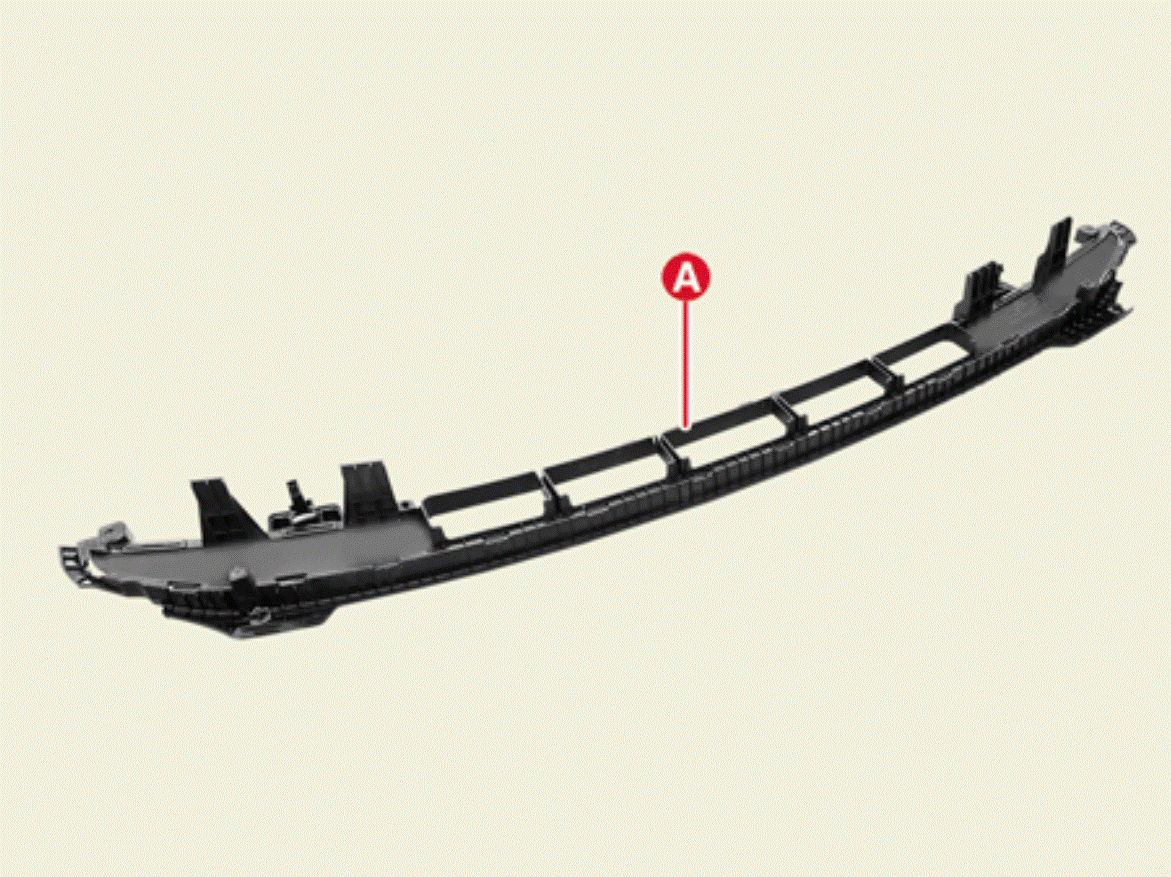

Remove the front bumper skid plate assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

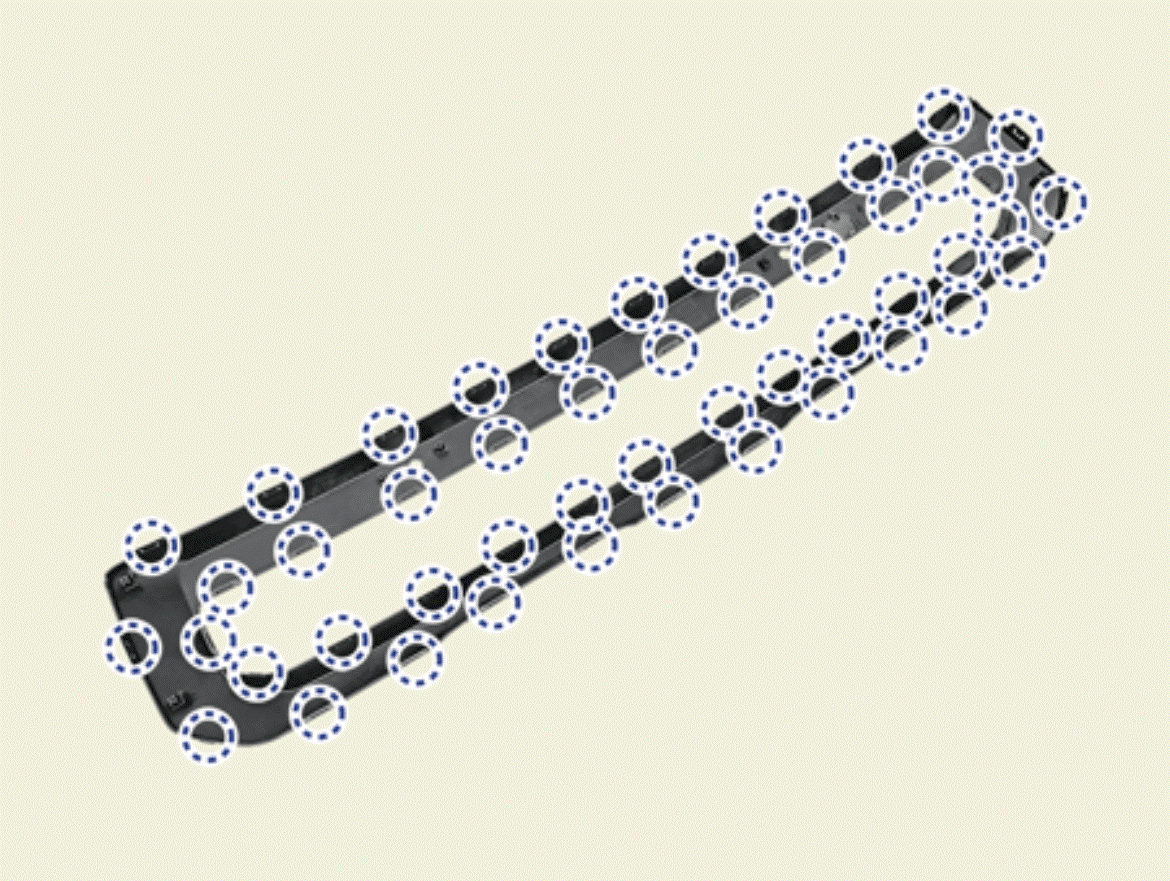

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

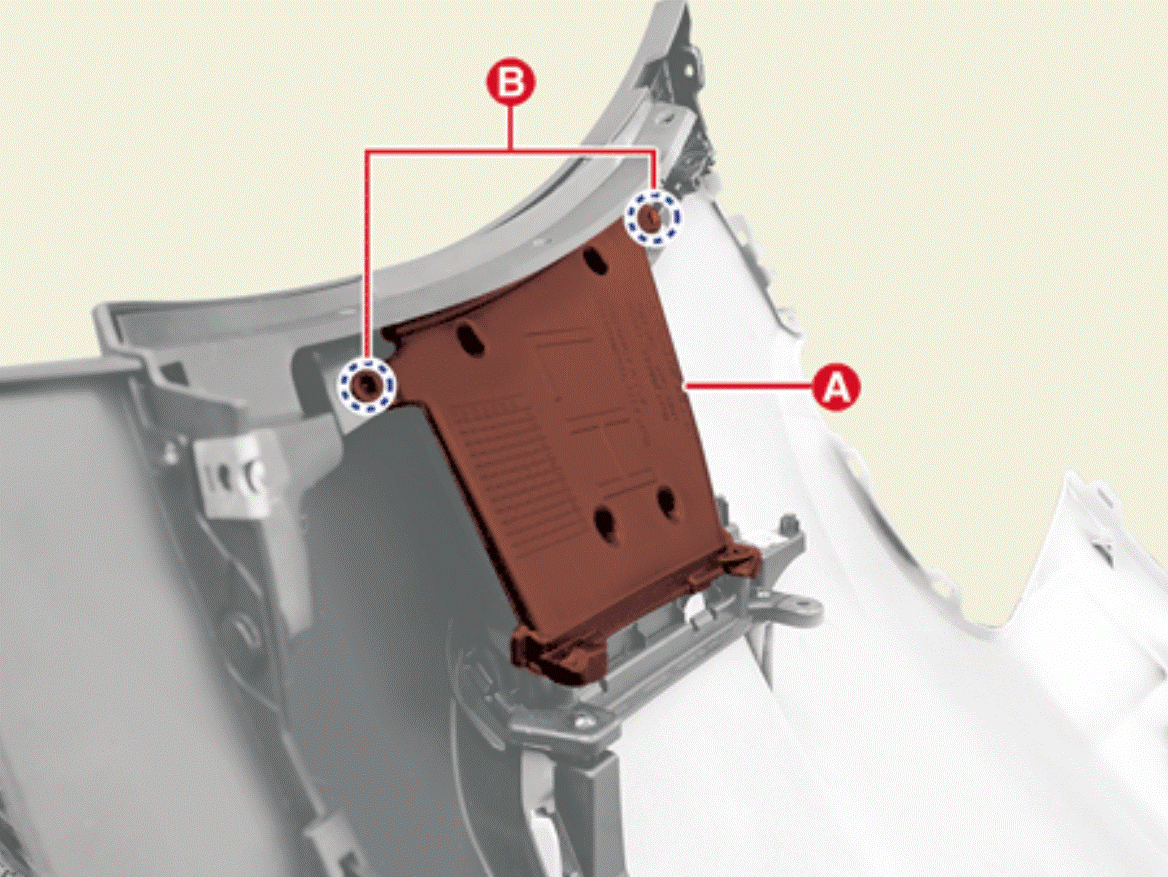

Remove the front bumper air duct assembly (A) after removing the rivets (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper molding (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
Front bumper lip (A) after removing the screws and clips.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper upper cover (A) after removing the bolts.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

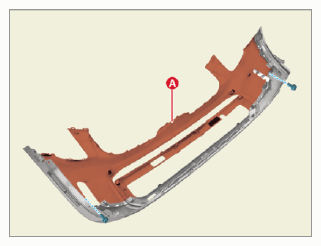

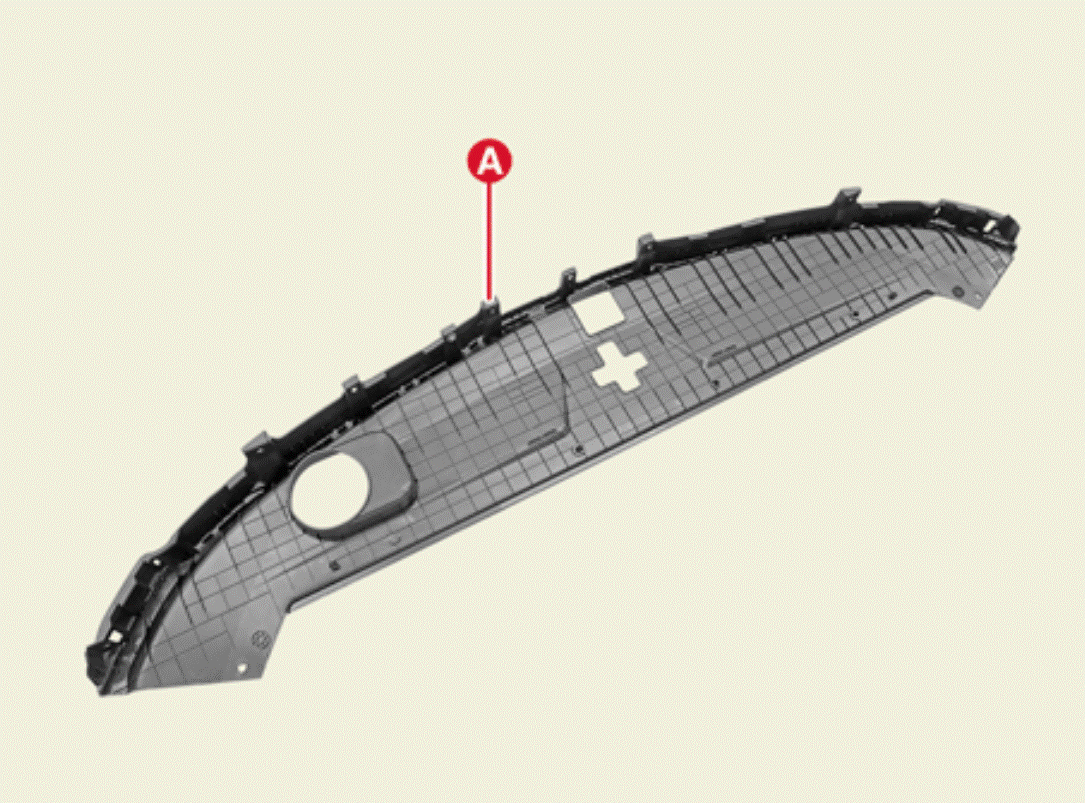

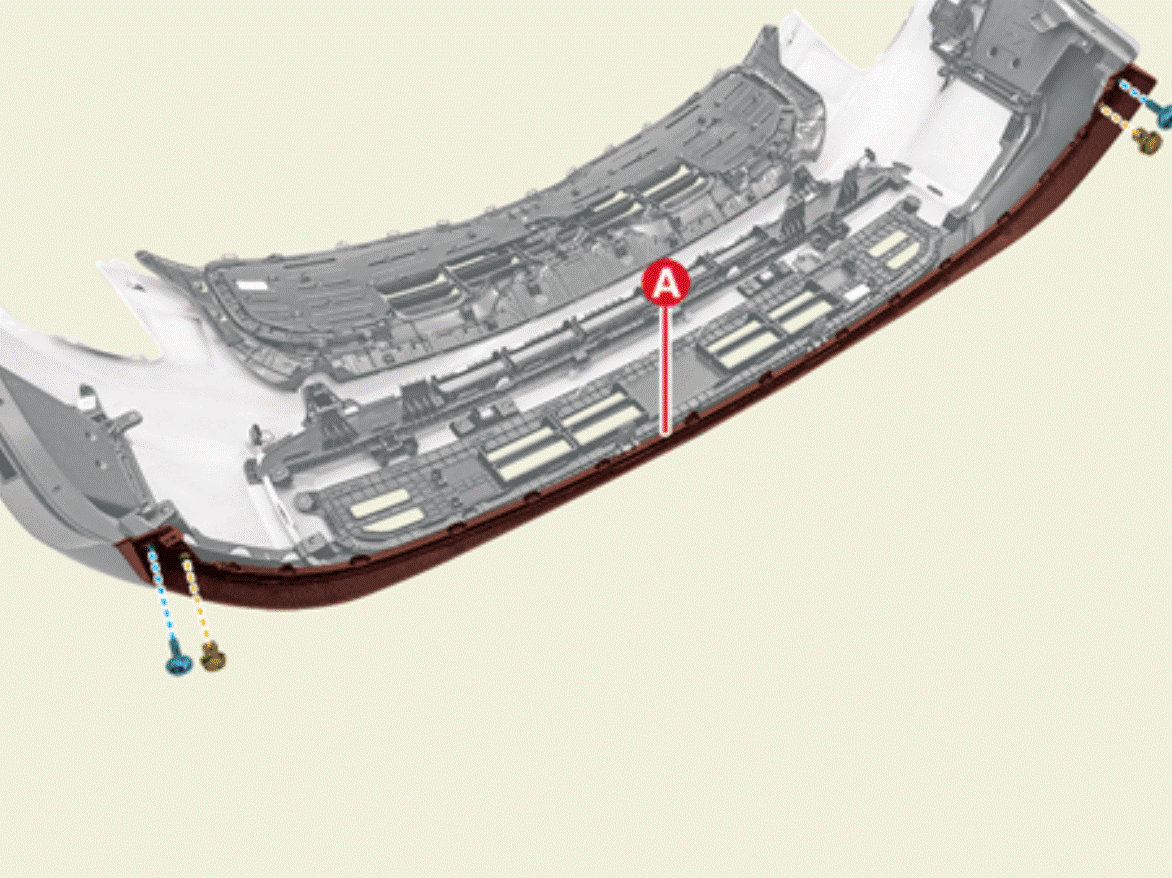

Remove the front bumper lower cover (A).

G15709899
