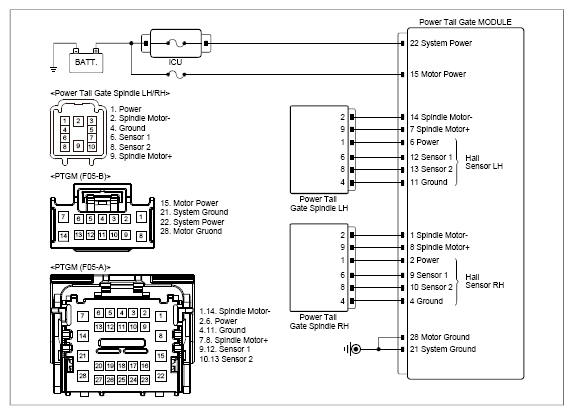

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Right spindle hall sensor | 1 (power) | Chassis ground | - | B+ |
| Right spindle hall sensor | 4 (ground) | Chassis ground | - | Approx. 0V | |
|
Right spindle hall sensor | 6 (Sensor1) | PTGM harness connector | 9 (Sensor1) | Approx. below 1Ω |
| Right spindle hall sensor | 8 (Sensor2) | PTGM harness connector | 10 (Sensor2) | Approx. below 1Ω | |
Good
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Perform the relevant diagnostic procedure.
- If the symptoms persist, replace right spindle hall sensor and perform the relevant procedure.
