Monitor DTC Status
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

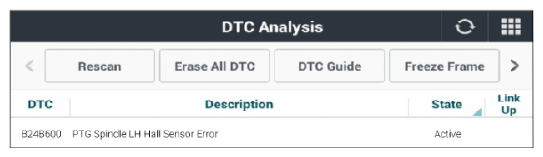

Fig.1 below |
Active Fault
- Go to "MONITOR KDS DATA " procedure.
History/Pending Fault
- Fault is intermittent caused by poor contact in PTG's connector or was repaired and PTG memory was not cleared.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.
