KDS data analysis

Inspection Condition	Inspection Procedure	Reference

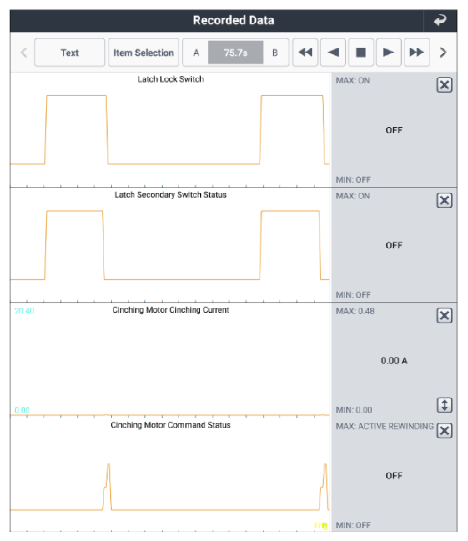

Ignition "ON".	Connect KDS to Data Link Connector (DLC). Monitor "Current Data" with KDS.	Fig.1 below

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in PTGM's connector or was repaired and PTGM memory was not cleared.
Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.

No Good
