Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5 below
G15720300Courtesy of KIA MOTORS AMERICA, INC.

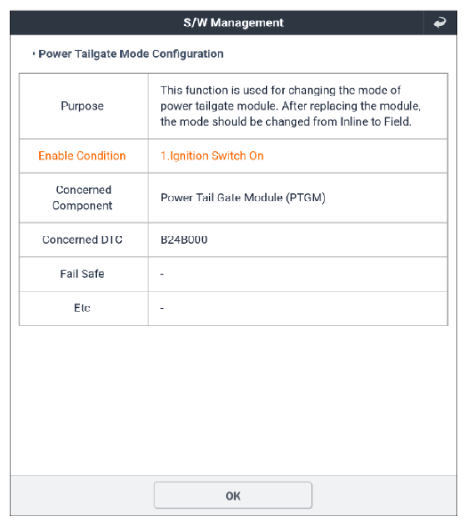

G15720301Courtesy of KIA MOTORS AMERICA, INC.

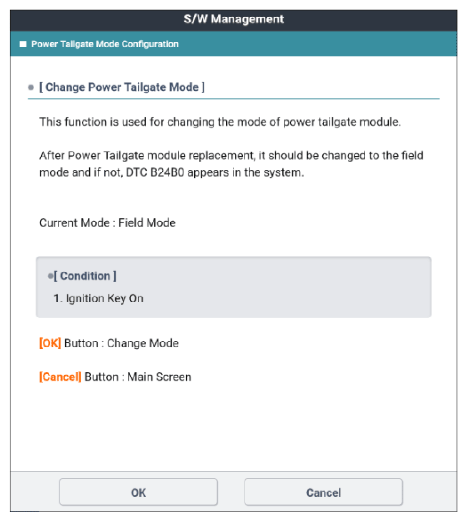

G15720302Courtesy of KIA MOTORS AMERICA, INC.

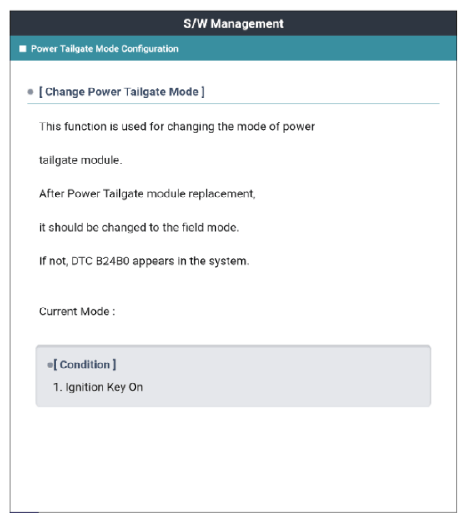

G15720303Courtesy of KIA MOTORS AMERICA, INC.
G15720304Courtesy of KIA MOTORS AMERICA, INC.
