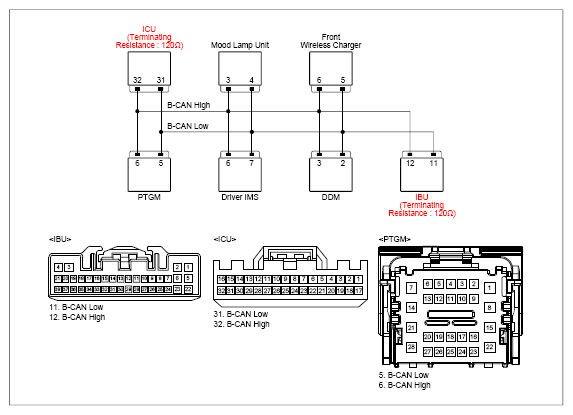

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

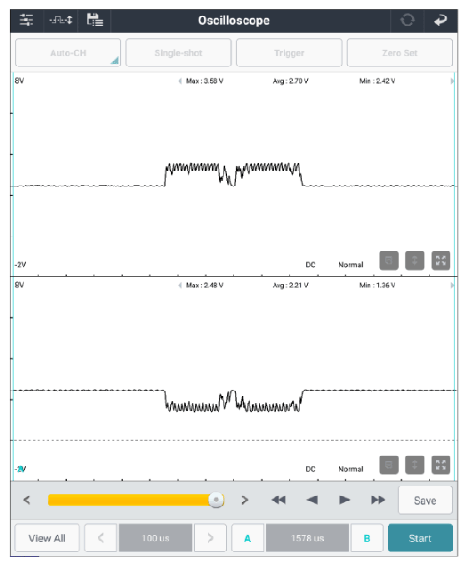

PTGM harness connector | 6 (B-CAN high) | Chassis ground | - | Fig.1 below |
| PTGM harness connector | 5 (B-CAN low) | Chassis ground | - | ||
|
PTGM harness connector | 6 (B-CAN high) | PTGM harness connector | 5 (B-CAN low) | Approx. 60Ω |
|
PTGM harness connector | 6 (B-CAN high) | IBU (component side) | 12 (B-CAN high) | Approx. below 1Ω |
| PTGM harness connector | 5 (B-CAN low) | IBU (component side) | 11 (B-CAN low) | Approx. below 1Ω | |
| PTGM harness connector | 6 (B-CAN high) | ICU (component side) | 32 (B-CAN high) | Approx. below 1Ω | |
| PTGM harness connector | 5 (B-CAN low) | ICU (component side) | 31 (B-CAN low) | Approx. below 1Ω | |
| IBU (component side) | 12 (B-CAN high) | IBU (component side) | 11 (B-CAN low) | Approx. 120Ω | |
| ICU (component side) | 32 (B-CAN high) | ICU (component side) | 31 (B-CAN low) | Approx. 120Ω | |
Good
- Disconnect B-CAN communication units one by one and monitor DTC to find the cause.
- If problem still occurs, replace control unit that causing the fault and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- Check for open, short to battery/ground in B-CAN line.
- Repair as necessary, go to "VERIFICATION OF REPAIR " procedure.
