Vehicle S/W Management

S/W Management - Status Information
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig 1 to 2

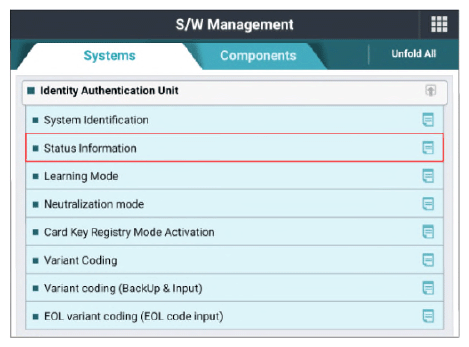

G15723564Courtesy of KIA MOTORS AMERICA, INC.

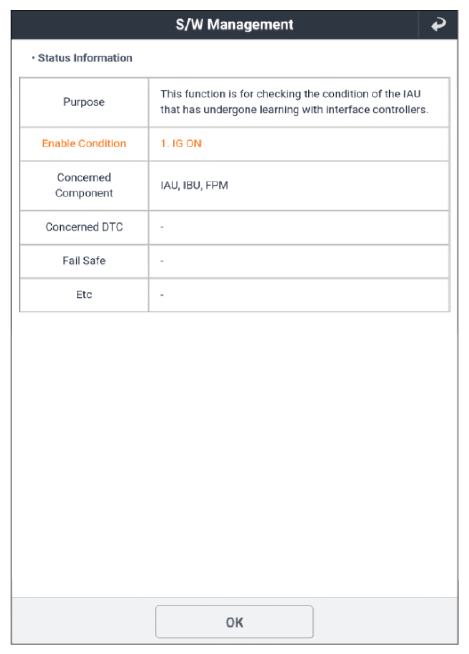

G15723565Courtesy of KIA MOTORS AMERICA, INC.
S/W Management - Learning Mode
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig 1 to 2
G15723566Courtesy of KIA MOTORS AMERICA, INC.

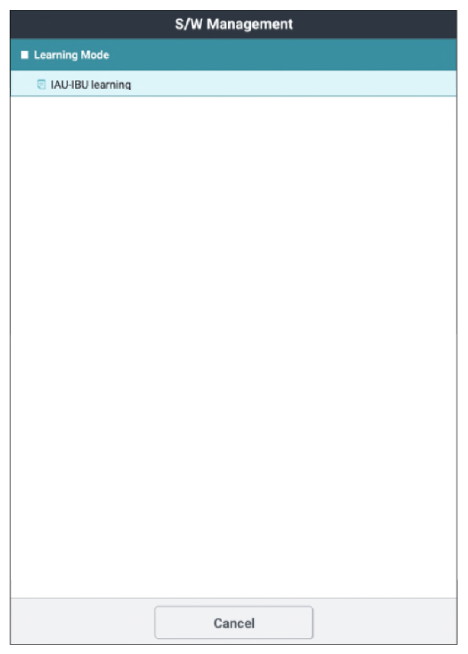

G15723567Courtesy of KIA MOTORS AMERICA, INC.
S/W Management - Neutralization Mode
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig 1 to 3

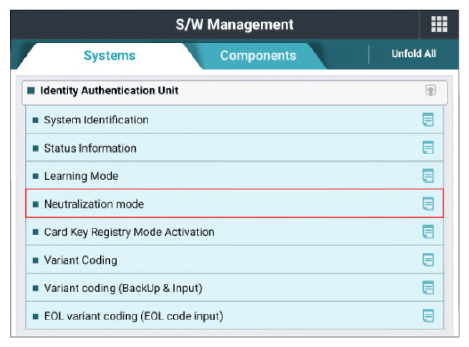

G15723568Courtesy of KIA MOTORS AMERICA, INC.

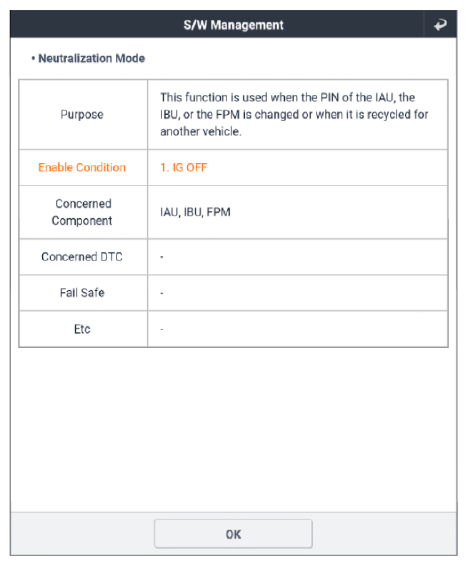

G15723569Courtesy of KIA MOTORS AMERICA, INC.
G15723570Courtesy of KIA MOTORS AMERICA, INC.
