Vehicle S/W Management

S/W Management - Status Information
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig 1 to 2
G15723505Courtesy of KIA MOTORS AMERICA, INC.

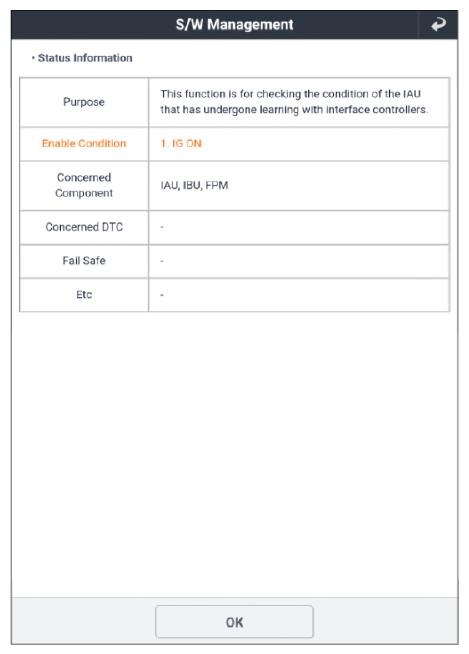

G15723506Courtesy of KIA MOTORS AMERICA, INC.
S/W Management - Learning Mode
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig 1 to 2

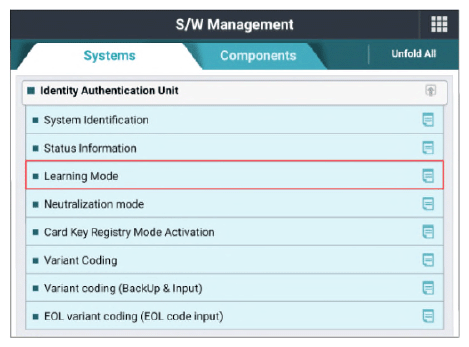

G15723507Courtesy of KIA MOTORS AMERICA, INC.

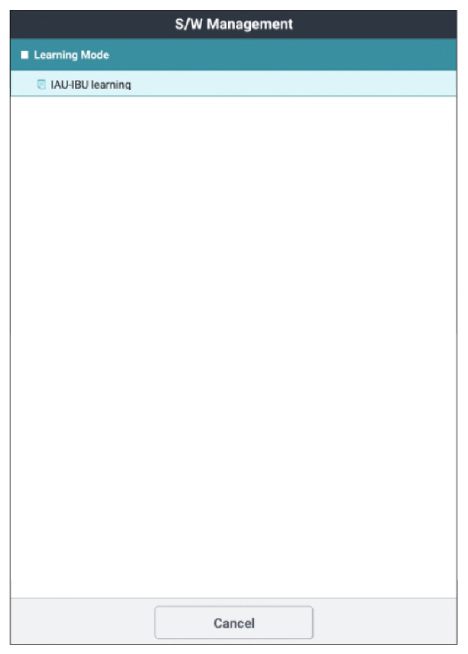

G15723508Courtesy of KIA MOTORS AMERICA, INC.
S/W Management - Neutralization Mode
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig 1 to 3

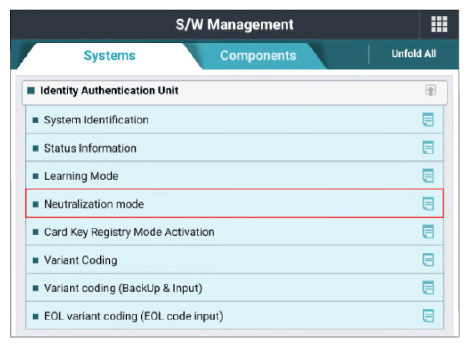

G15723509Courtesy of KIA MOTORS AMERICA, INC.

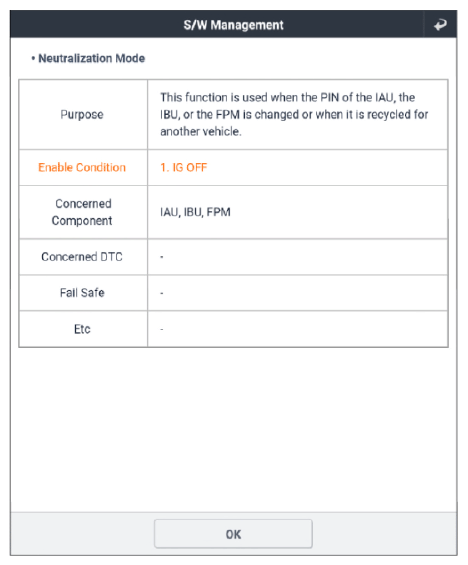

G15723510Courtesy of KIA MOTORS AMERICA, INC.
G15723511Courtesy of KIA MOTORS AMERICA, INC.
