Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Identity Authentication Unit Diagnosis >> DTC B1603-00: CAN Bus Off >> Wiring Inspection >> Circuit Inspection >> Notes

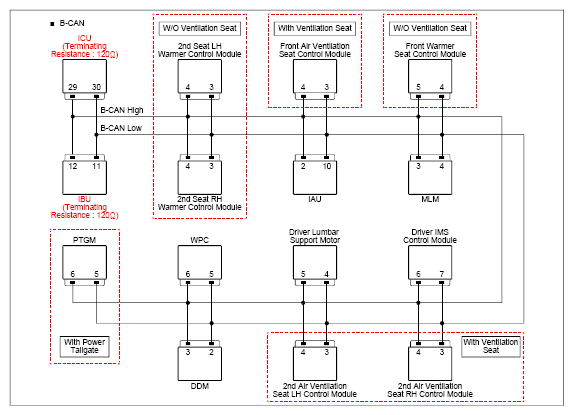

Circuit Inspection: Notes

G15723479Courtesy of KIA MOTORS AMERICA, INC.
