Vehicle S/W Management

S/W Management - Status Information
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig 1 to 2

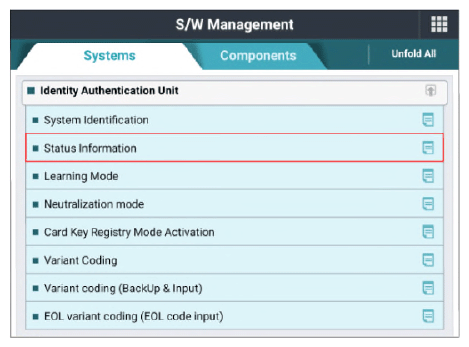

G15723486Courtesy of KIA MOTORS AMERICA, INC.

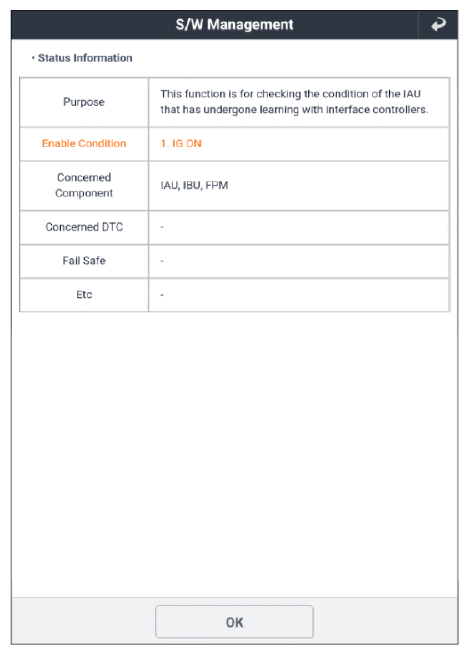

G15723487Courtesy of KIA MOTORS AMERICA, INC.
S/W Management - Learning Mode
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig 1 to 2
G15723488Courtesy of KIA MOTORS AMERICA, INC.

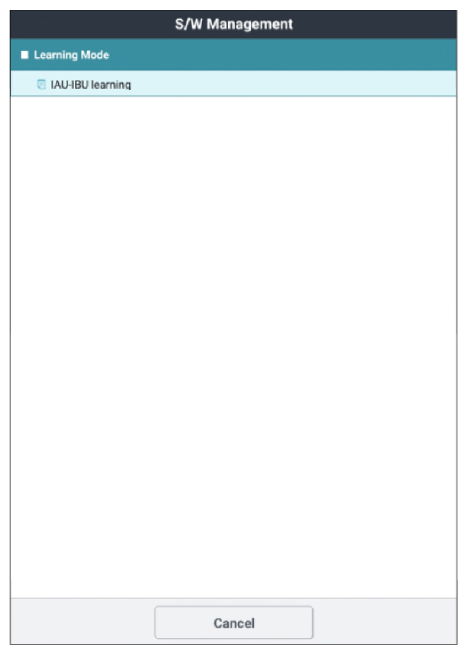

G15723489Courtesy of KIA MOTORS AMERICA, INC.
S/W Management - Neutralization Mode
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig 1 to 3

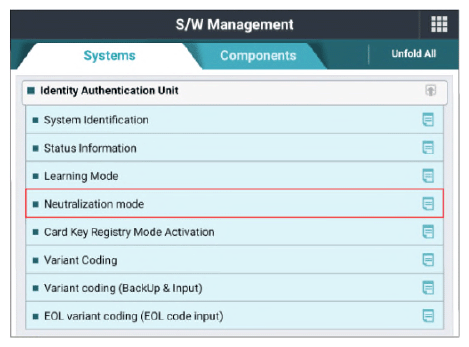

G15723490Courtesy of KIA MOTORS AMERICA, INC.

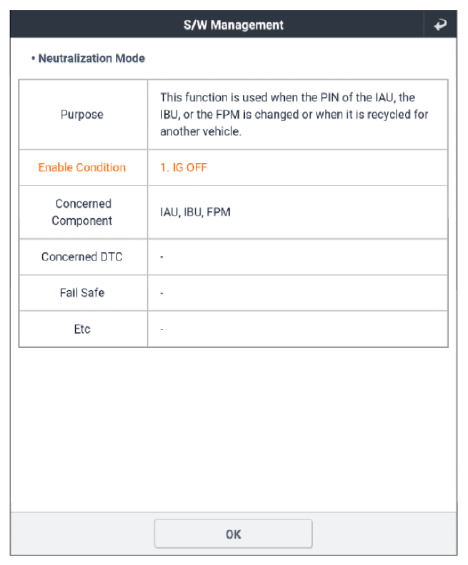

G15723491Courtesy of KIA MOTORS AMERICA, INC.
G15723492Courtesy of KIA MOTORS AMERICA, INC.
