Removal & Installation: Removal

Remove the Knee Airbag (KAB) module.
(Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

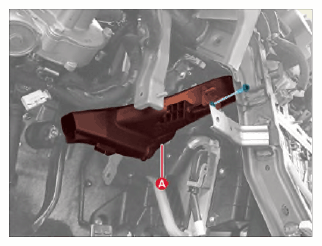

Remove the driver's side shower duct (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

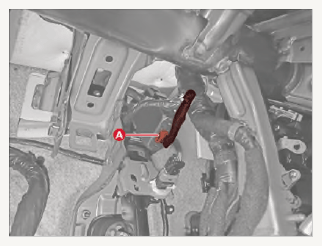

Disconnect the Identity Authentication Unit (IAU) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

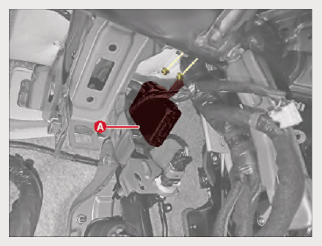

Remove the Identity Authentication Unit (IAU) (A) after removing the nuts.
Tightening torque:

6.9 - 9.8 N.m (0.7 - 1 kgf.m, 5.1 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
