Wiper Motor
>>

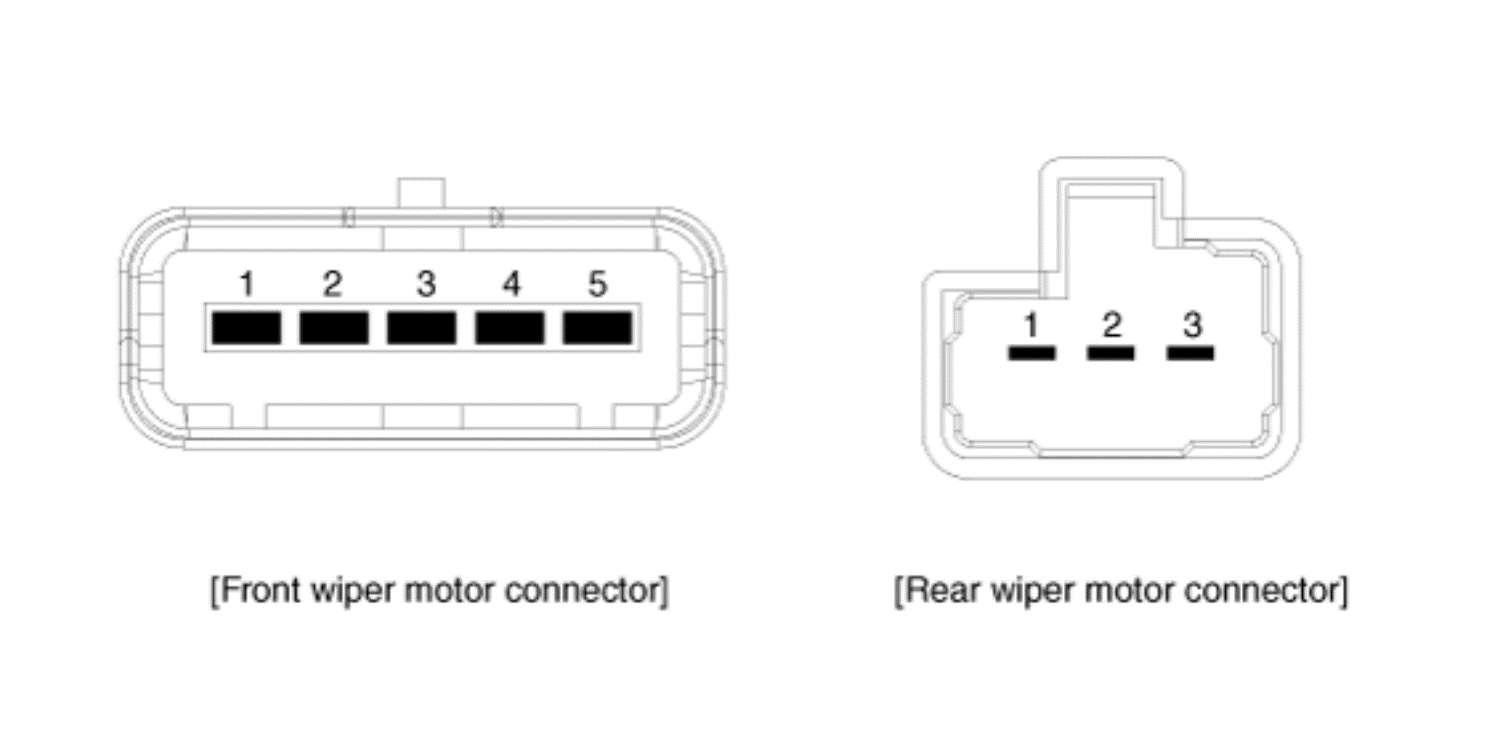

Connector And Terminal Function
Connector And Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
Pin
Function
Front wiper motor
Rear wiper motor
1
High
Low
2
Low
Ground
3
Battery
Parking
4
Parking
5
Ground
Courtesy of KIA MOTORS AMERICA, INC.
