Front Wiper Blade

Information

• After turning off the engine, move the wiper switch to the single wiping (MIST) position within 20 seconds and hold the switch more than 2 seconds until the wiper blade is in the service position.
• After IG ON, move the wiper switch to the single wiping (MIST) and wiper arms will return to the normal operating position.

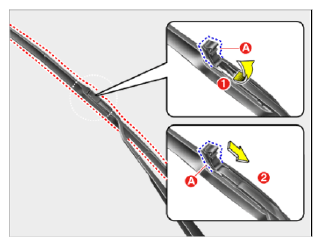

1. Remove the blade by pushing it in the direction of the arrow after opening the hook (A).

   Courtesy of KIA MOTORS AMERICA, INC.

2. Install in reverse order of removal.
