Rear Wiper Arm

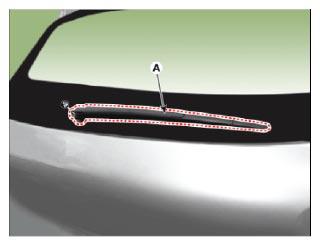

Separate the rear wiper arm cap (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear wiper arm (A) after removing the nut.
Tightening torque:

8.8 - 12.7 N.m (0.9 - 1.3 kgf.m, 6.5 - 9.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
