Removal
>>
Front Wiper Arm
Front Wiper Arm

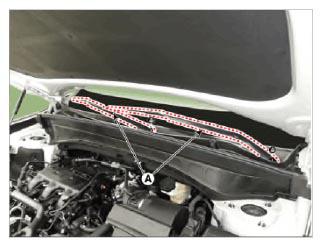

Remove the wiper arms (A) by removing the nuts after removing the caps.
Tightening torque:
22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb.ft)
