Removal & Installation: Installation

  1. Install in reverse order of removal.
    NOTE:
    • When installing, place the wiper arm to the specified position and then tighten the nut.

    [Front Wiper]

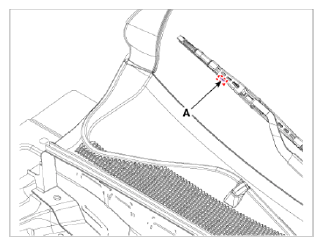

    • Place the wipers to the marking (A) position of cowl top cover.
      G15710425Courtesy of KIA MOTORS AMERICA, INC.
    • Place the wipers to the marking (A) position of windshield glass.
    G15710426Courtesy of KIA MOTORS AMERICA, INC.
