Reservoir Tank

  1. Remove the washer motor.

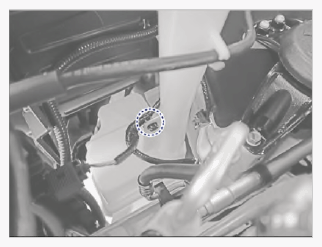

  2. Remove the washer fluid level sensor.

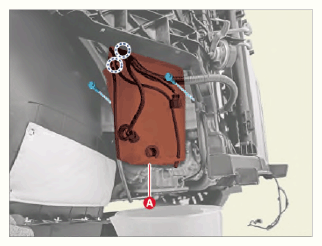

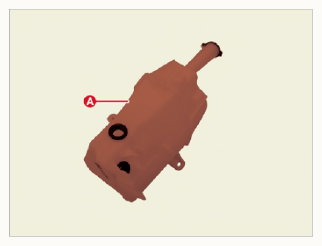

  3. Remove the reservoir tank (A) after removing the bolts.

    Tightening torque:

    6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8 lb.ft)

G15710437Courtesy of KIA MOTORS AMERICA, INC.
G15710438Courtesy of KIA MOTORS AMERICA, INC.
G15710439Courtesy of KIA MOTORS AMERICA, INC.
