Washer Fluid Level Sensor

  1. Disconnect the negative (-) battery terminal.
  2. Drain the washer fluid less than 650 cc.

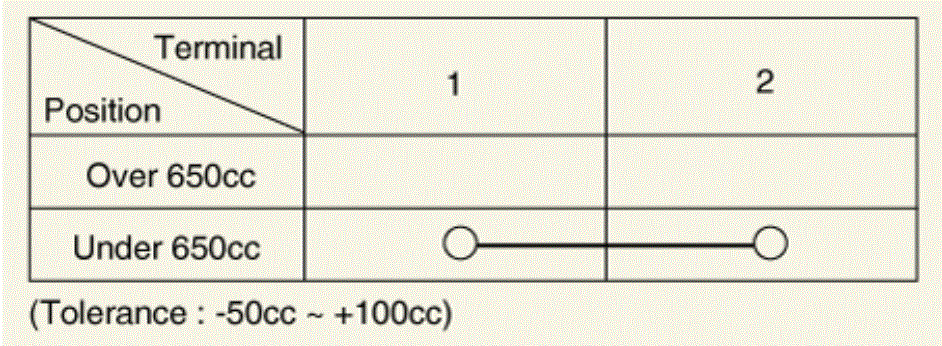

  3. Check the continuity of between terminals.

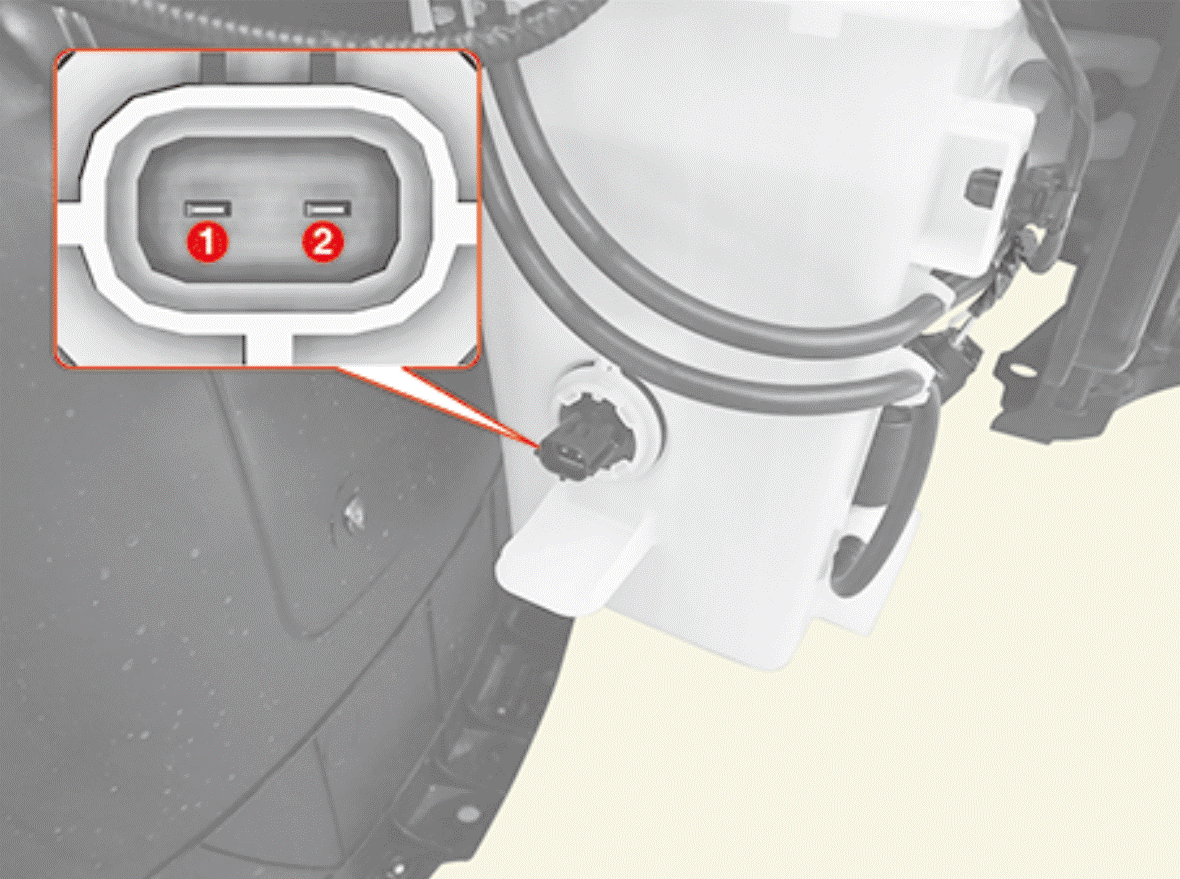

G15710442Courtesy of KIA MOTORS AMERICA, INC.
G15710443Courtesy of KIA MOTORS AMERICA, INC.
