Removal & Installation: Removal

  1. Remove the clock spring.

    (Refer to Restraint - "CLOCK SPRING ")

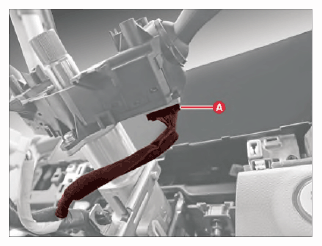

  2. Disconnect the multifunction switch connector (A).
    G15710319Courtesy of KIA MOTORS AMERICA, INC.

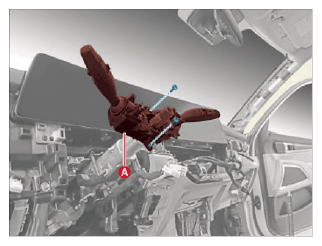

  3. Remove the multifunction switch assembly (A) after removing the screws.
G15710320Courtesy of KIA MOTORS AMERICA, INC.
