Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

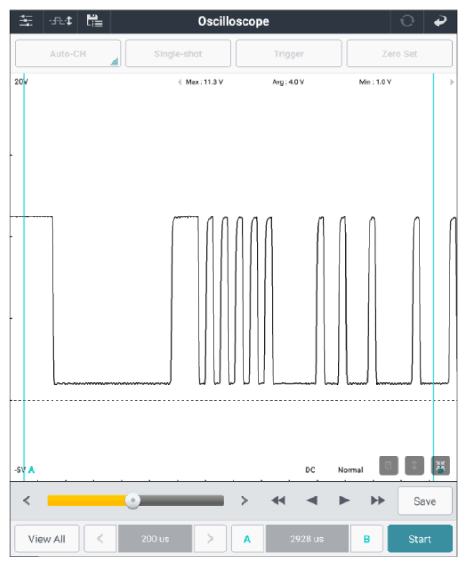

Rear door mood lamp connector | 1 (power) | Chassis ground | - | B+ |
| Rear door mood lamp connector | 2 (LIN) | Chassis ground | - | Fig.1 | |
|
Rear door mood lamp connector | 3 (ground) | Chassis ground | - | Approx. below 1Ω |
| Rear door mood lamp connector | 2 (LIN) | Mood lamp module connector | 6 (LIN) | Approx. below 1Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage, and carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the MLM and Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the rear door mood lamp and Go to "VERIFICATION OF REPAIR " procedure.
