Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Door mood lamp LH connector | 1 (power) | Chassis ground | - | B+ |

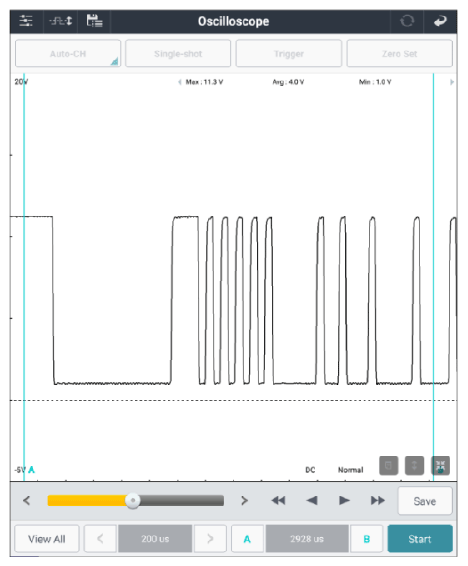

| Door mood lamp LH connector | 2 (LIN) | Chassis ground | - | Fig.1 | |
|
Door mood lamp LH connector | 3 (ground) | Chassis ground | - | Approx. below 1Ω |
| Door mood lamp LH connector | 2 (LIN) | Mood lamp module connector | 6 (LIN) | Approx. below 1Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage, and carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the MLM and Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the door mood lamp LH and Go to "VERIFICATION OF REPAIR " procedure.
