Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component Ignition "ON".	Mood lamp RH connector	1 (power)	Chassis ground	-	B+

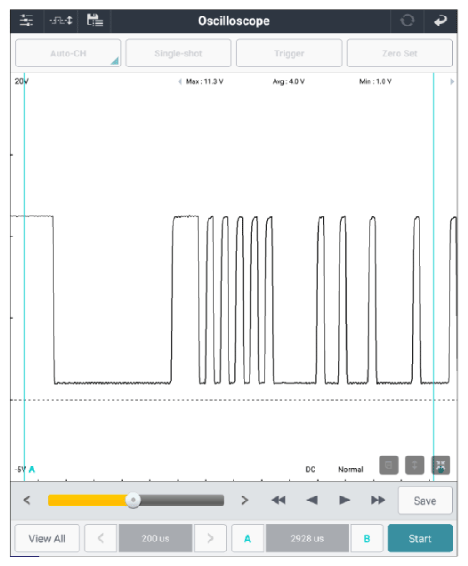

	Mood lamp RH connector	2 (LIN)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component	Mood lamp RH connector	3 (ground)	Chassis ground	-	Approx. below 1Ω
	Mood lamp RH connector	2 (LIN)	Mood lamp module connector	6 (LIN)	Approx. below 1Ω

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage, and carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the MLM and Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the front right foot lamp and Go to "VERIFICATION OF REPAIR " procedure.
