Removal & Installation: Removal

  1. Remove the out side view mirror scalp.

    (Refer to Body - "OUTSIDE REAR VIEW MIRROR ")

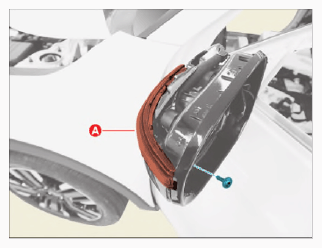

  2. Remove the side repeater lamp (A) after removing the screw.
    G15710262Courtesy of KIA MOTORS AMERICA, INC.
    G15710263Courtesy of KIA MOTORS AMERICA, INC.
  3. Separate the side repeater lamp connector packing (A).
    G15710264Courtesy of KIA MOTORS AMERICA, INC.

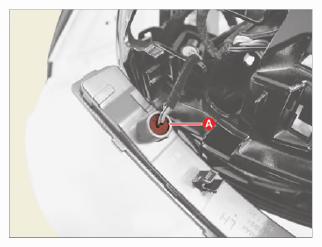

  4. Disconnect the side repeater lamp connector (A).
G15710265Courtesy of KIA MOTORS AMERICA, INC.
