Room Lamp: Replacement: Led

  1. Remove the rear heater and A/C control unit.

    (Refer to Heating, Ventilation And Air Conditioning - "HEATER AND A/C CONTROL UNIT ")

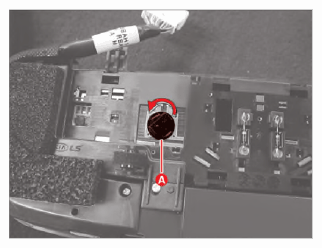

  2. Remove the room lamp LED socket (A) by rotating it in the counter-clockwise.
    G15710297Courtesy of KIA MOTORS AMERICA, INC.

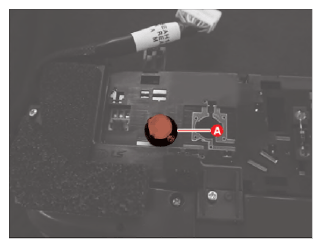

  3. Replace the room lamp LED (A).
    G15710298Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in reverse order of removal.
