Removal & Installation: Removal

  1. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD PANEL ")

  2. Remove the crash pad center garnish [Driver's side].

    (Refer to Body - "CRASH PAD GARNISH ")

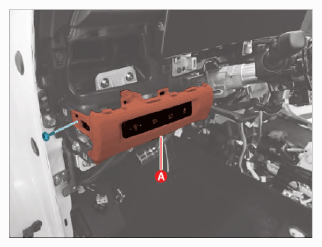

  3. Remove the crash pad side switch panel (A) after removing the screws.
    G15710308Courtesy of KIA MOTORS AMERICA, INC.

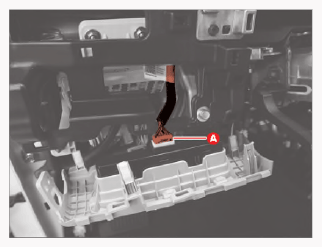

  4. Disconnect the crash pad side switch connector (A).
    G15710309Courtesy of KIA MOTORS AMERICA, INC.

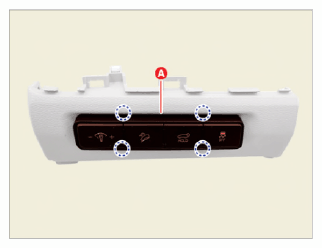

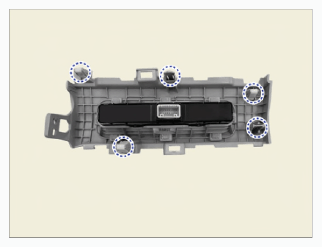

  5. Remove the crash pad side switch (A).
G15710310Courtesy of KIA MOTORS AMERICA, INC.
G15710311Courtesy of KIA MOTORS AMERICA, INC.
