Inside Rear Combination Lamp

  1. Remove the tailgate trim.

    (Refer to Body - "TAILGATE LID TRIM ")

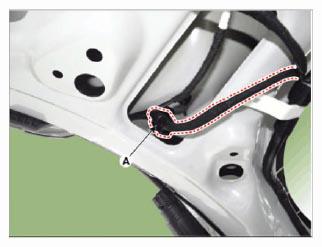

  2. Disconnect the inside rear combination connector (A).
    G15710288Courtesy of KIA MOTORS AMERICA, INC.

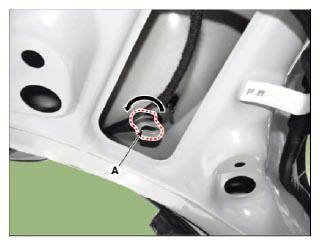

  3. Remove the lamp bulb socket (A) by turning in the counterclockwise.
    G15710289Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in reverse order of removal.
