Rear Combination Lamp: Replacement: Bulb: Absorbent

  1. Remove the outside rear combination lamp.

    (Refer to Lighting System - "REAR COMBINATION LAMP ")

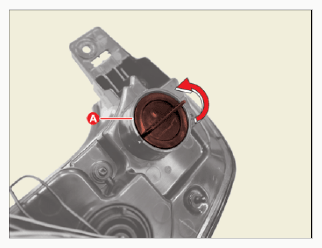

  2. Remove the dust cap (A) by turning in the counterclockwise.
    G15710290Courtesy of KIA MOTORS AMERICA, INC.

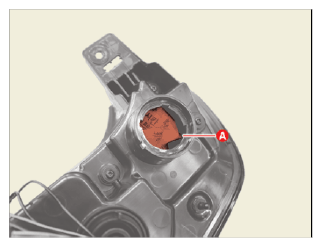

  3. Replace the absorbent (A).
    G15710291Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in reverse order of removal.
