Outside Rear Combination Lamp

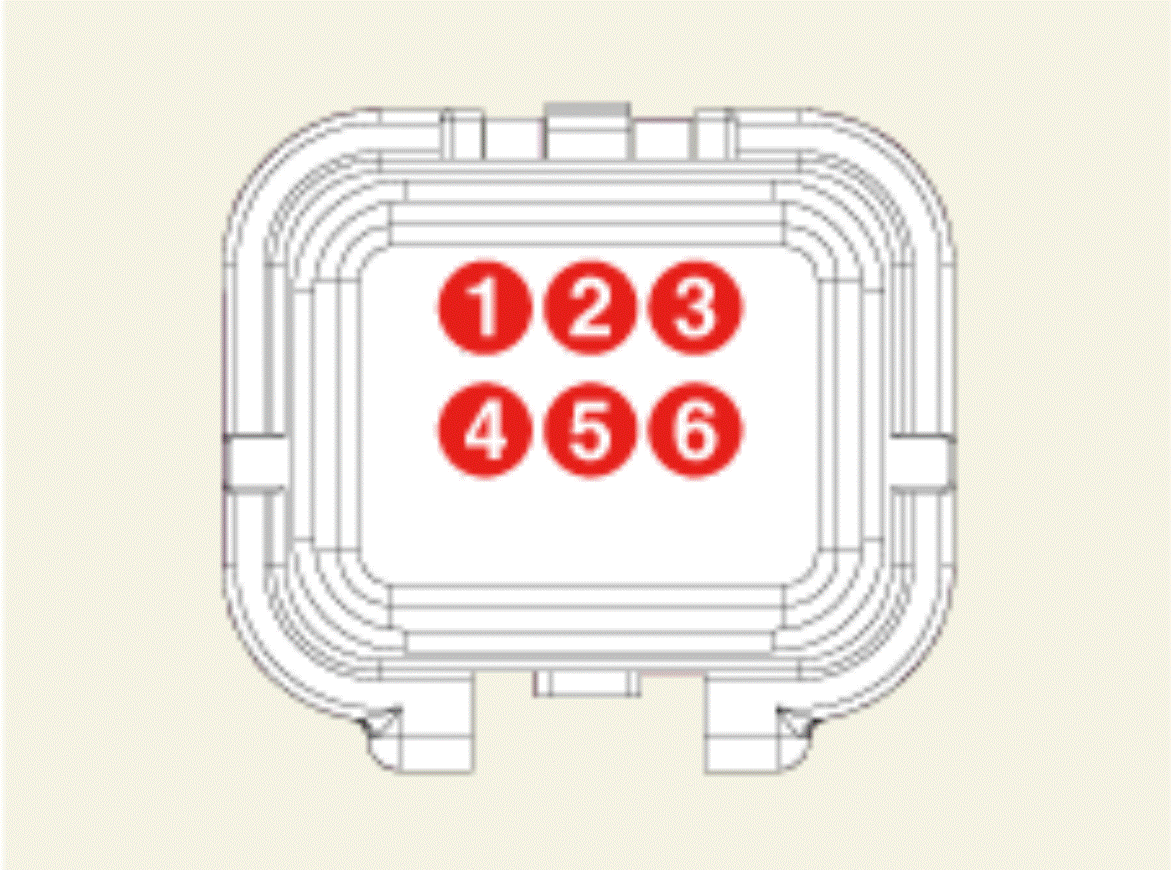

G15710282Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
Bulb LED
1 Tail lamp (+) Tail lamp/Side marker lamp (+)
2 - -
3 Turn lamp/Stop lamp (+) Turn lamp/Stop lamp (+)
4 Ground: Stop/Tail/Turn lamp Turn lamp (Telltail) (+)
5 Ground: Side marker lamp Ground: Turn/Stop/Tail/Side marker lamp
6 Side marker lamp (+) -
