Connector And Terminal Function
>>

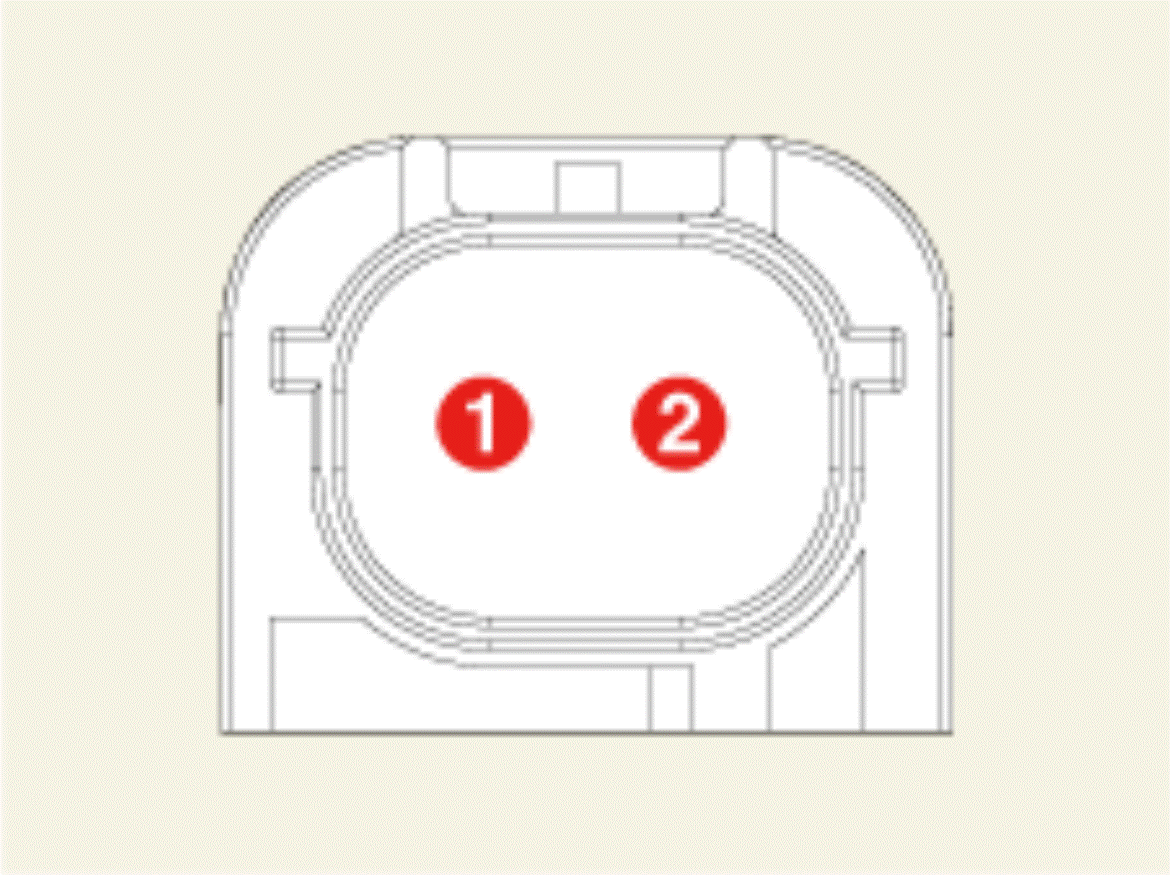

Inside Rear Combination Lamp
Inside Rear Combination Lamp
Courtesy of KIA MOTORS AMERICA, INC.
Pin
Function
1
Ground
2
[Integrated type] Back-up lamp (+)
[Separated type] Tail lamp (+)
