Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting System >> Overhead Console Lamp >> Removal & Installation >> Removal

Removal & Installation: Removal

  1. Disconnect the negative (-) battery terminal.

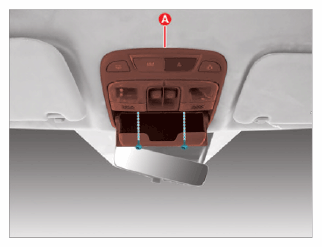

  2. Remove the overhead console lamp (A) after removing the screws.
    G15710275Courtesy of KIA MOTORS AMERICA, INC.

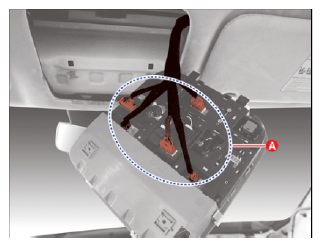

  3. Disconnect the overhead console lamp connectors (A).
    G15710276Courtesy of KIA MOTORS AMERICA, INC.

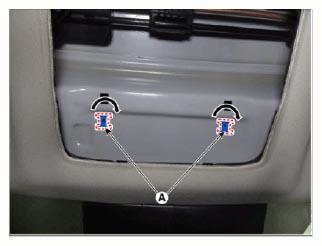

  4. Remove the room lamp mounting clips (A).
G15710277Courtesy of KIA MOTORS AMERICA, INC.
