Overhead Console Lamp: Inspection
- Remove the overhead console lamp.
(Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")

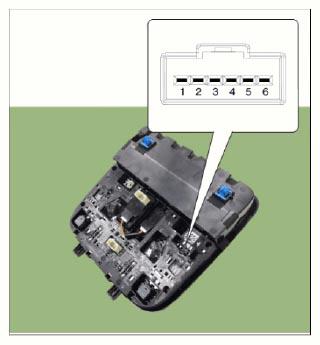

- Check for continuity between terminals.
| Terminal | Switch OFF | Switch ON |
|---|---|---|
| 2 - 3 | No continuity | Continuity |
(Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")
| Terminal | Switch OFF | Switch ON |
|---|---|---|
| 2 - 3 | No continuity | Continuity |
