Telluride SX X-Line
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Interior/Illumination Lights
>>
Lighting System
>>
Overhead Console Lamp
>>
Connector And Terminal Function
>>
TMU Switch

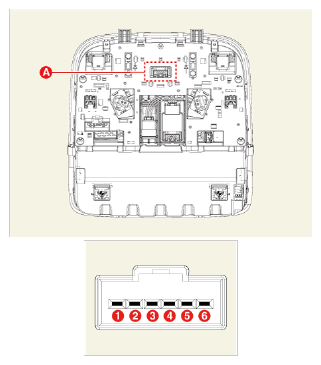

TMU Switch
Courtesy of KIA MOTORS AMERICA, INC.
Pin
Function
1
ILL. (+)
2
Key pad signal (+)
3
-
4
-
5
Key pad signal (-)
6
Ground
