License Lamp: Replacement: Bulb

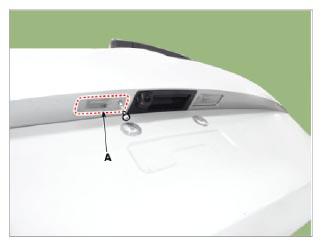

  1. Remove the license lamp lense (A) after removing the screw.
    G15710270Courtesy of KIA MOTORS AMERICA, INC.

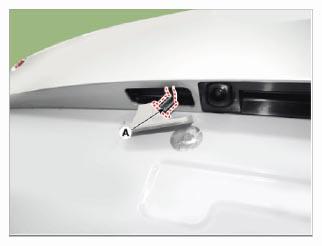

  2. Remove the license lamp socket (A).
    G15710271Courtesy of KIA MOTORS AMERICA, INC.

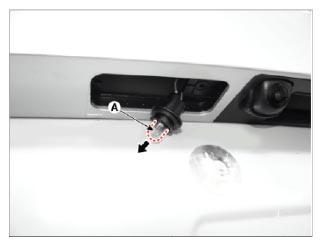

  3. Replace the license lamp bulb (A).
    G15710272Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in reverse order of removal.
