Removal & Installation: Removal

  1. Remove the rear spoiler.

    (Refer to Body - "REAR SPOILER ")

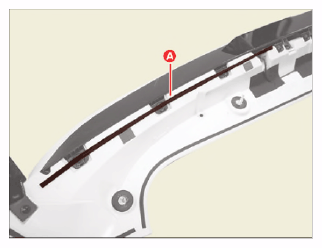

  2. Remove the spoiler tape (A).
    G15710266Courtesy of KIA MOTORS AMERICA, INC.

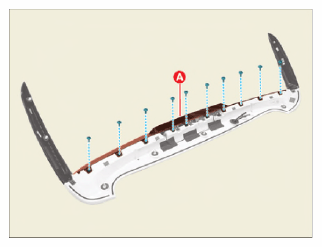

  3. Remove the rear spoiler under cover (A) after removing the screws.
    G15710267Courtesy of KIA MOTORS AMERICA, INC.

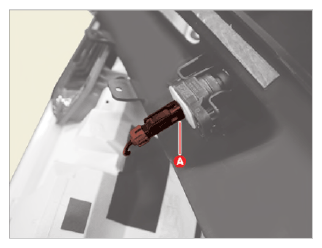

  4. Disconnect the rear view camera connector (A).
    G15710268Courtesy of KIA MOTORS AMERICA, INC.

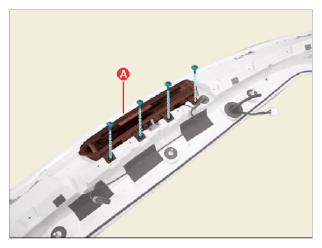

  5. Remove the high mounted stop lamp (A) after removing the screws.
G15710269Courtesy of KIA MOTORS AMERICA, INC.
