LED Driver Module (LDM)

  1. Remove the headlamp assembly.

    (Refer to Lighting System - "HEADLAMPS ")

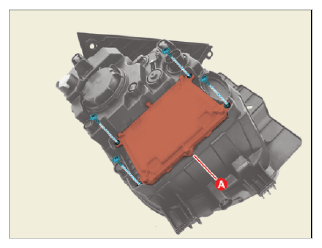

  2. Remove the LDM (A) after removing the screws.
    G15710249Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the LDM connector (A).
    G15710250Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in reverse order of removal.
