Lighting System: Headlamps: Replacement: Absorbent

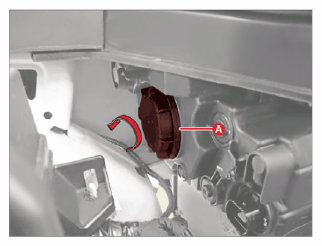

  1. Remove the dust cap (A) by turning in the counterclockwise direction.
    G15710245Courtesy of KIA MOTORS AMERICA, INC.

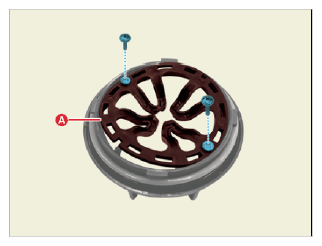

  2. Remove the absorbent bracket (A) after removing the screws.
    G15710246Courtesy of KIA MOTORS AMERICA, INC.

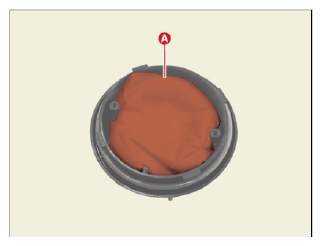

  3. Replace the absorbent (A).
    G15710247Courtesy of KIA MOTORS AMERICA, INC.

    Information

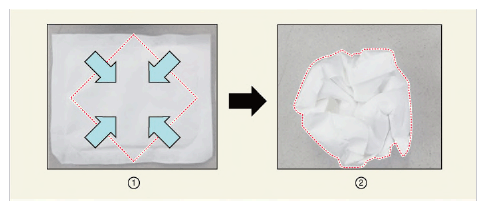

    Fold the new absorbent material as the picture below.

    G15710248Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in reverse order of removal.
