Removal & Installation: Removal

Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")
Disconnect the headlamp connector.

Courtesy of KIA MOTORS AMERICA, INC.

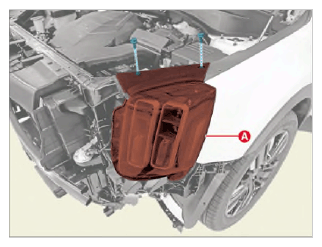

Remove the headlamp (A) in the direction of the arrow after removing the bolts.
Tightening torque:

9.8 - 13.7 N.m (1 - 1.4 kgf.m, 7.2 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

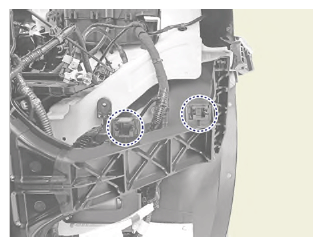

NOTE: Be careful not to damage the clips.

Courtesy of KIA MOTORS AMERICA, INC.
