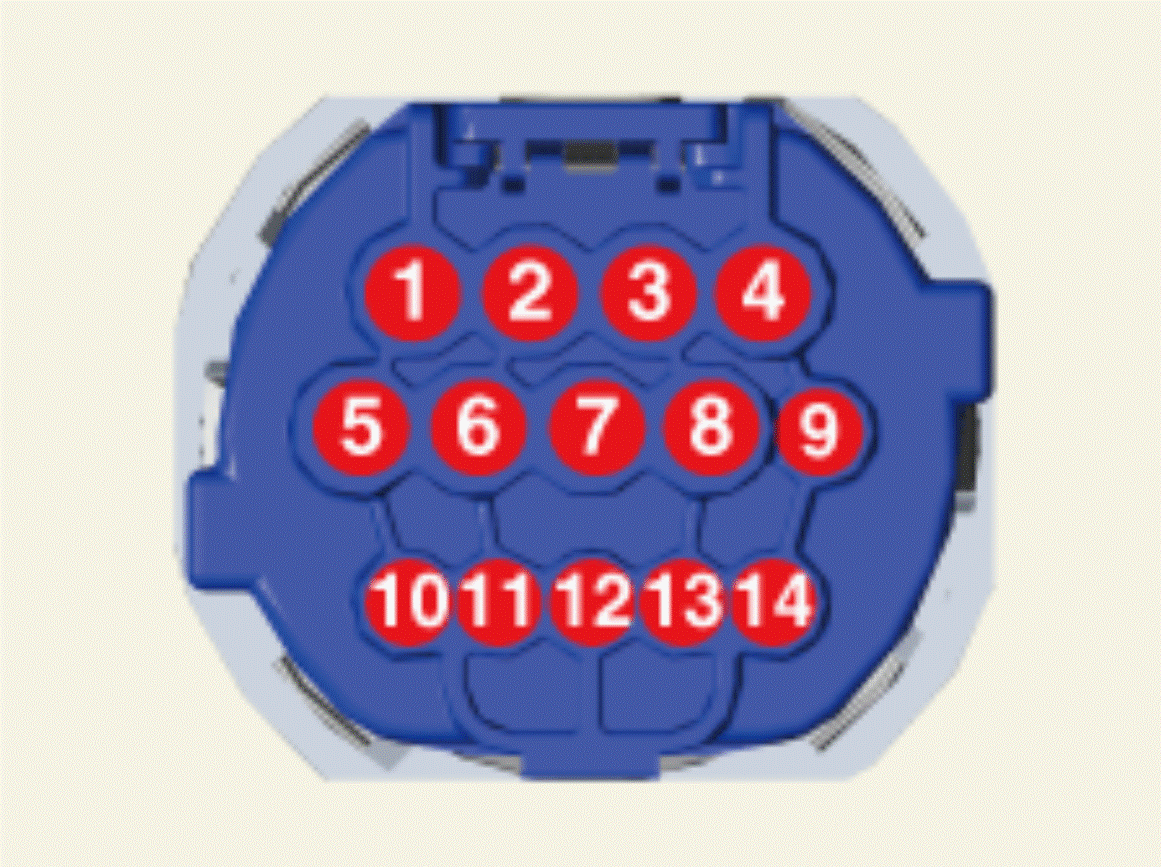

Connector And Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.
Pin	Function
1	Low (+)
2	High (-)
3	Turn lamp signal (+)
4	-
5	Low ground (-)
6	High ground (-)
7	Turn lamp, DRL, Position lamp, Side marker lamp ground (-)
8	-
9	Position lamp, Side marker lamp ground (+)
10	DRL (+)
11	-
12	-
13	Low telltale
14	Turn lamp (Telltale)
