Headlamp Aiming Point: Notes

Courtesy of KIA MOTORS AMERICA, INC.

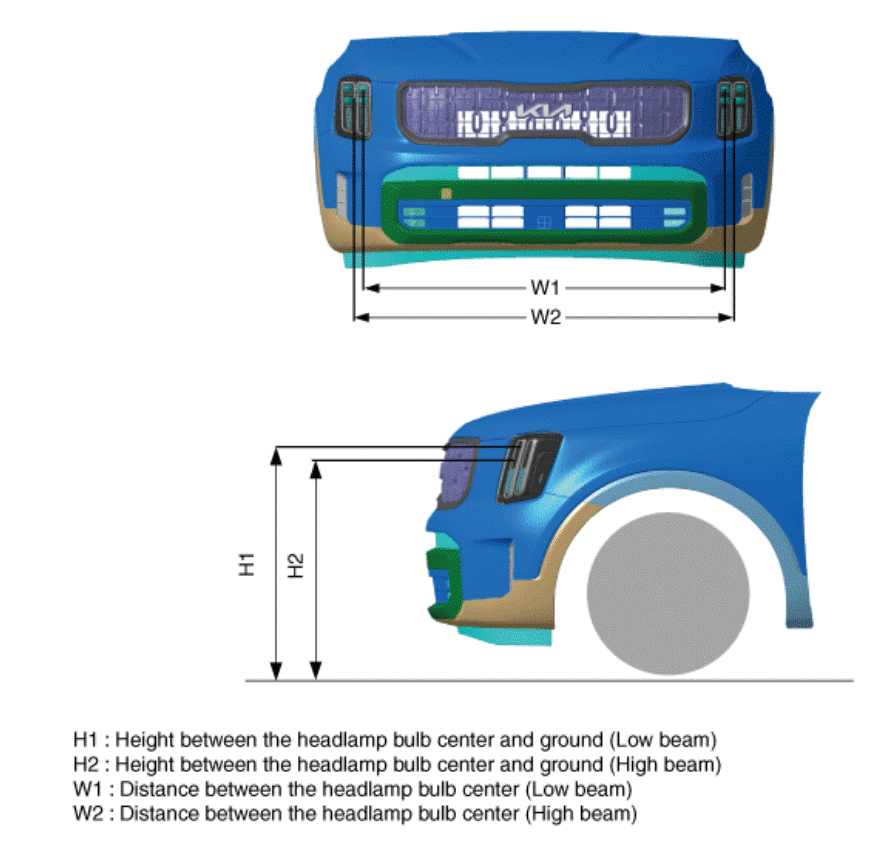

Base Vehicle	H1		H2		W1	W2	Remark
Tire (in.)	18	20	18	20	W1	W2	Remark
Empty	958 (37.71654)	962 (37.87402)	908 (35.74803)	912 (35.90551)	1554 (61.1811)	1618 (63.70079)	ALL DIM in mm (in.)
1 person on-board	953 (37.51969)	957 (37.67717)	903 (35.55118)	907 (35.70866)	1554 (61.1811)	1618 (63.70079)	ALL DIM in mm (in.)

Information

X-Line/X-Pro: (H1, H2) + 10 mm (0.3937)
