Low Beam

  1. VOR Type (Visually Optically aimed using the Right side of the low beam): Draw a horizontal line at -0.2% from the headlamp ground clearance.

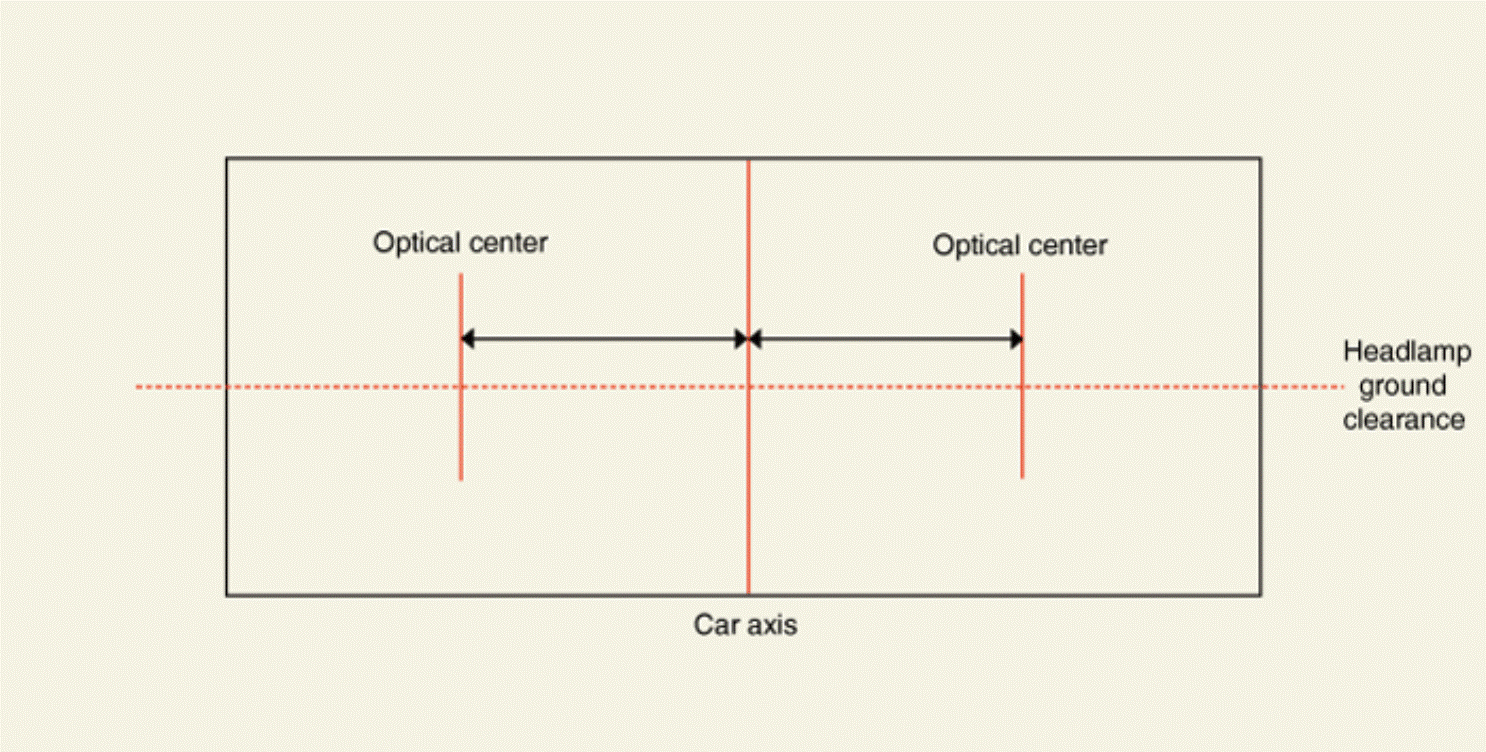

    G15710253Courtesy of KIA MOTORS AMERICA, INC.
  2. Turn on to low beam the check the up-down/left-right aiming position.
  3. Up-down Aiming: Match the cut-off line -0.2% line on the screen.

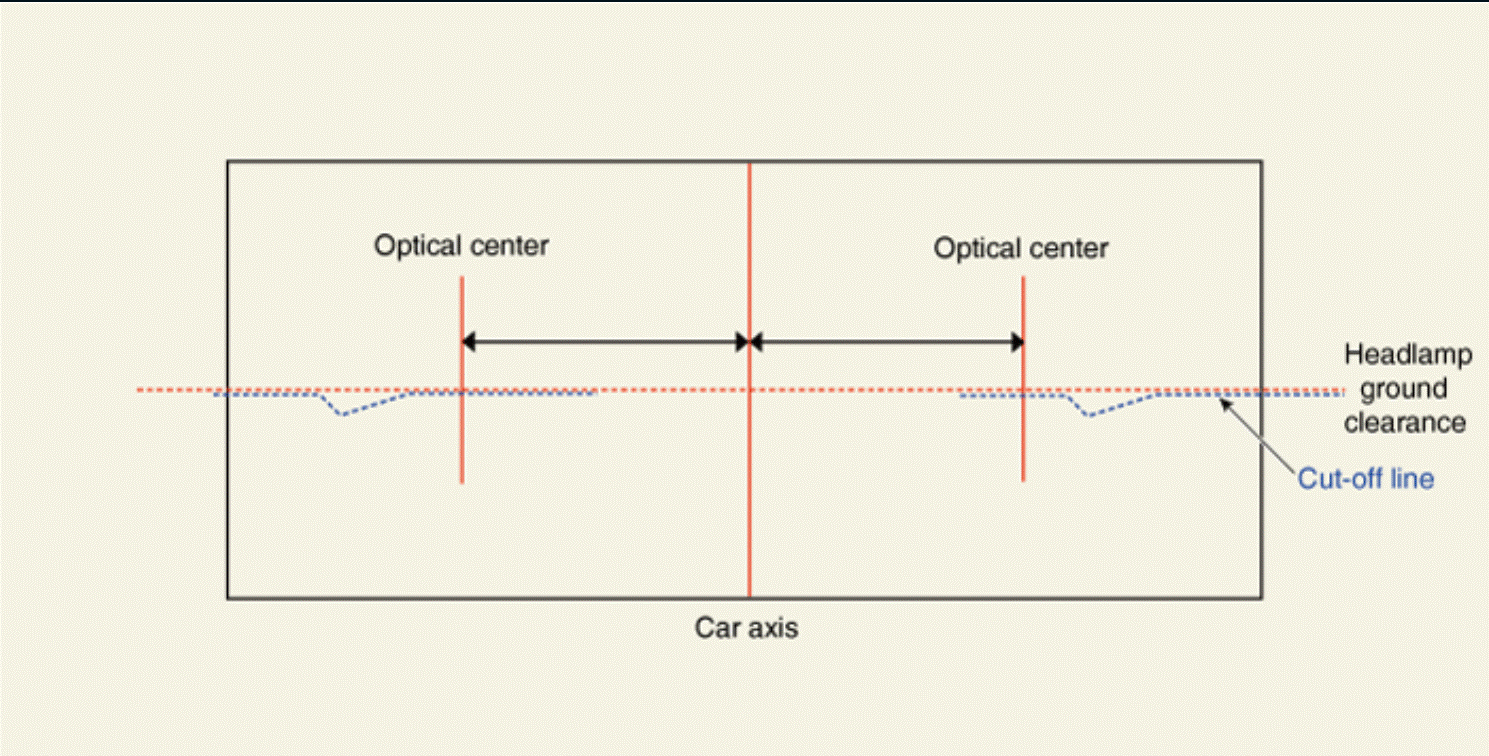

    G15710254Courtesy of KIA MOTORS AMERICA, INC.
  4. Left-Right Aiming: Match the left-right aiming point to the vertical line of optical center on the screen.

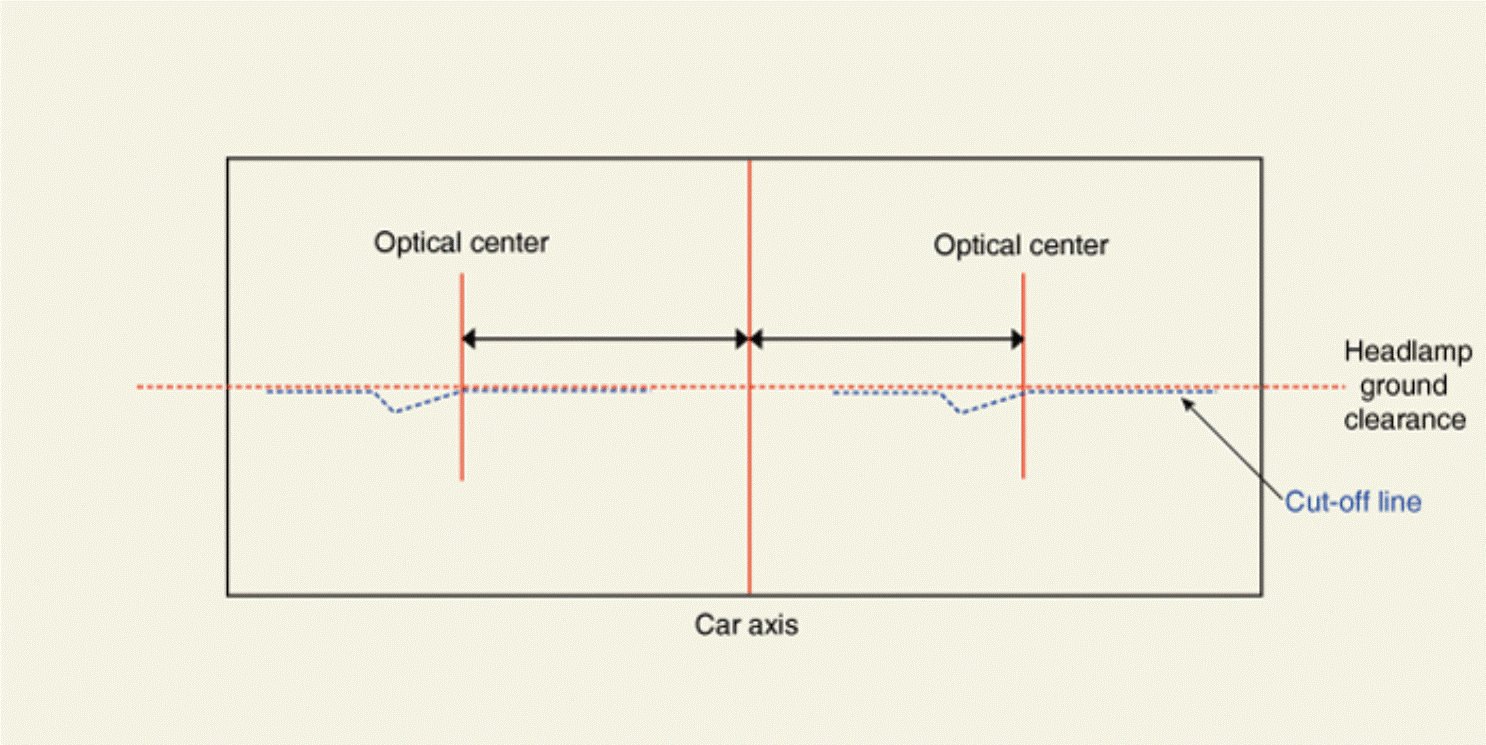

G15710255Courtesy of KIA MOTORS AMERICA, INC.
