High Beam

  1. High beam hot point must be checked after low beam aiming. (No in-line aiming)

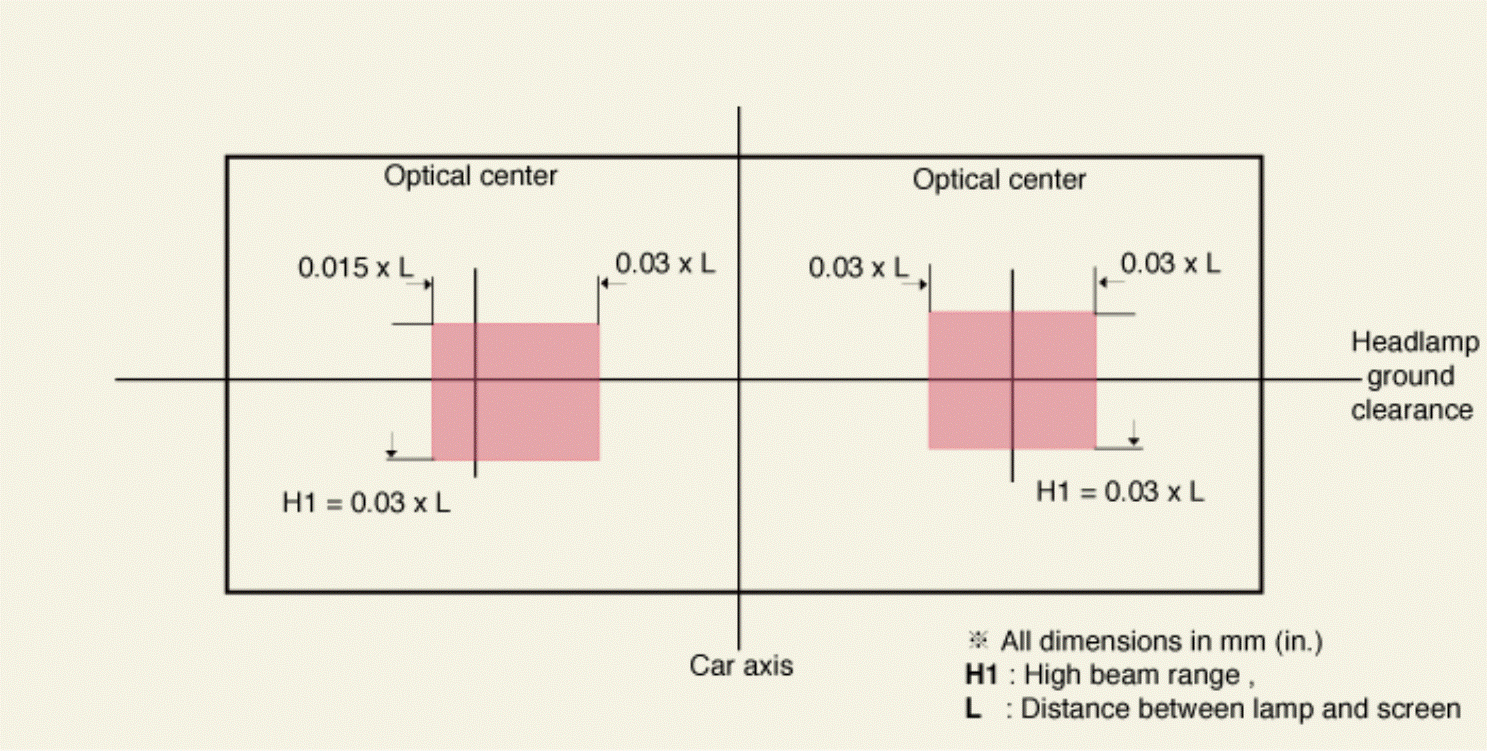

  2. If high beam hot point deviates from below hot zone (RED BOX) after low beam aiming, this is because of defective lamps or damage and it should be inspected further or replace as needed.
G15710256Courtesy of KIA MOTORS AMERICA, INC.
