Fog Lamp Aiming
Turn the adjusting gear to adjust the fog lamp aiming. If beam-setting equipment is not available, proceed as follows.
- Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools.
- The vehicle should be placed on a flat floor.
- Check if there is something wrong with the suspension spring.
- Clean the headlamp lens.
- Draw vertical lines (Vertical lines passing through respective fog lamps centers) and a horizontal line (Horizontal line passing through center of fog lamps) on the screen.

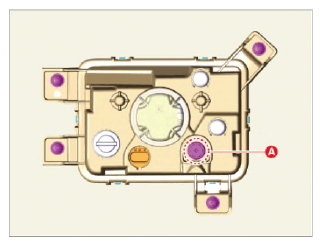

- With the fog lamp and battery in normal condition, adjust the fog lamp aiming by turning the adjusting screw (A).
