Fog Lamp Aiming Point

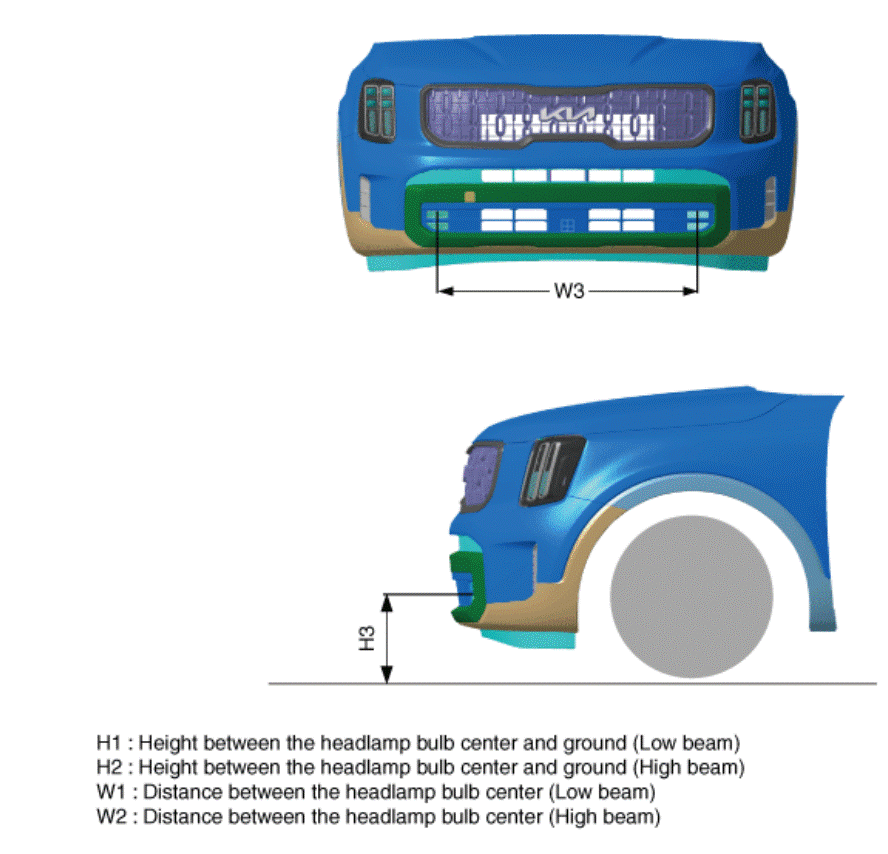

| Base Vehicle | H3 | W3 | Remark | |
|---|---|---|---|---|
| Tire (in.) | 18 | 20 | ||
| Empty | 403 (15.86614) | 407 (16.02362) | 1114 (43.85827) | ALL DIM in mm (in.) |
| 1 person on-board | 398 (15.66929) | 402 (15.82677) | ||
Information
X-Line/X-Pro: (H3) + 10 mm (0.3937)
- Turn the front fog lamp on without the driver aboard.

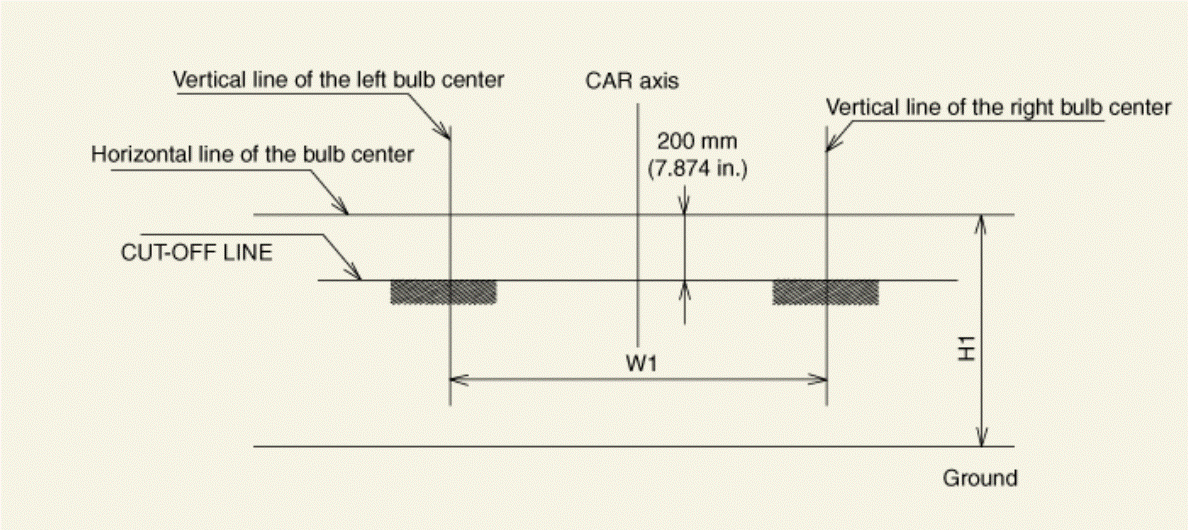

- The cut-off line should be projected in the allowable range (shaded region).
