Back-up Lamp: Replacement: Bulb

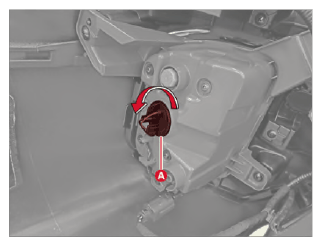

  1. Remove the back-up lamp bulb socket (A) by turning in the counterclockwise.
    G15710294Courtesy of KIA MOTORS AMERICA, INC.

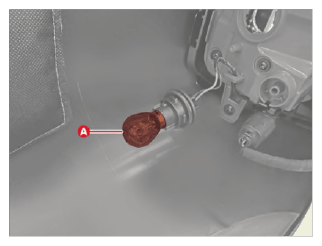

  2. Replace the back-up lamp bulb (A).
    G15710295Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in reverse order of removal.
