Removal & Installation: Removal

  1. Remove the rear bumper assembly.

    (Refer to Body - "REAR BUMPER ASSEMBLY ")

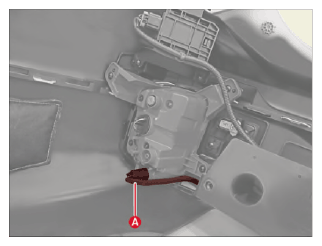

  2. Disconnect the back-up lamp connector (A).
    G15710292Courtesy of KIA MOTORS AMERICA, INC.

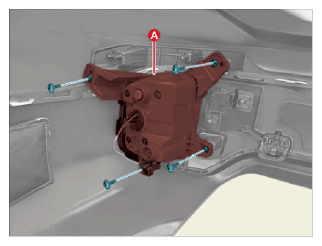

  3. Remove the back-up lamp (A) after removing the screws.
G15710293Courtesy of KIA MOTORS AMERICA, INC.
