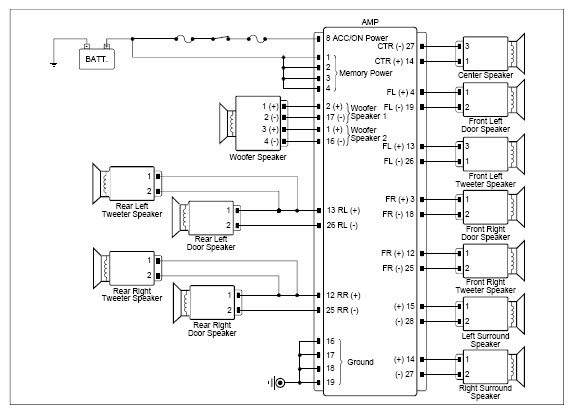

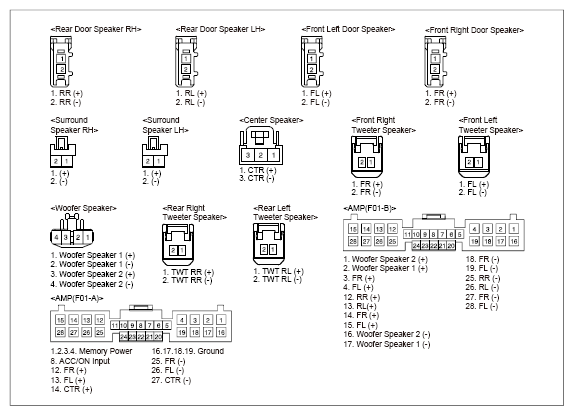

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	Rear right tweeter speaker connector	1 (TWT RR+)	AMP connector	12 (MID/TWT RR+)	Approx. below 1Ω
	Rear right tweeter speaker connector	2 (TWT RR-)	AMP connector	25 (MID/TWT RR-)	Approx. below 1Ω

Good

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
