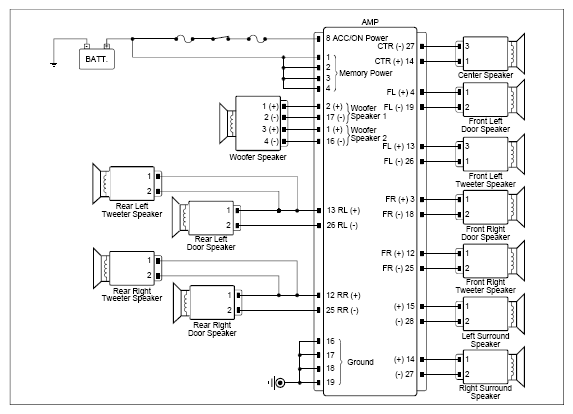

Circuit Inspection

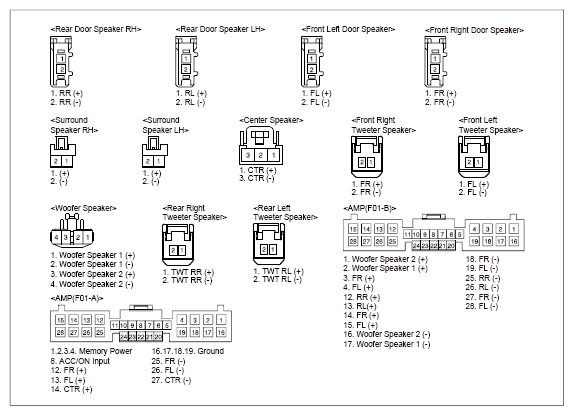

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	Rear left tweeter speaker connector	1 (TWT RL+)	AMP connector	13 (MID/TWT RL+)	Approx. below 1Ω
	Rear left tweeter speaker connector	2 (TWT RL-)	AMP connector	26 (MID/TWT RL-)	Approx. below 1Ω

Good

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
