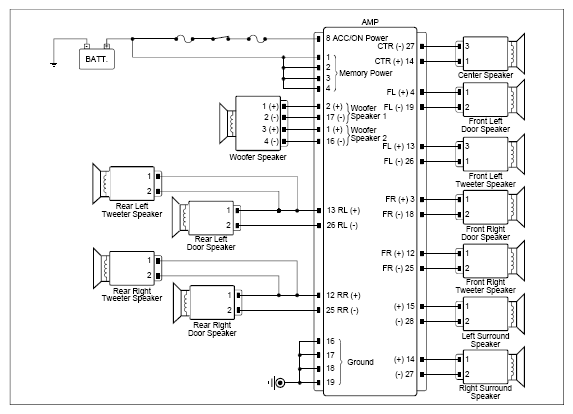

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

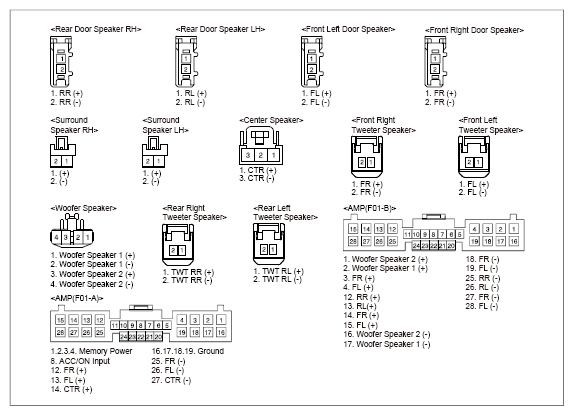

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	Front right door tweeter speaker connector	1 (FR+)	AMP connector	12 (FR+)	Approx. below 1Ω
	Front right door tweeter speaker connector	2 (FR-)	AMP connector	25 (FR-)	Approx. below 1Ω

Good

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
