Removal & Installation: Removal

  1. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

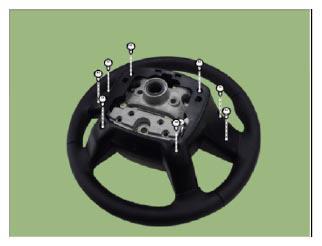

  2. Remove the steering wheel lower cover screws.
    G15710085Courtesy of KIA MOTORS AMERICA, INC.

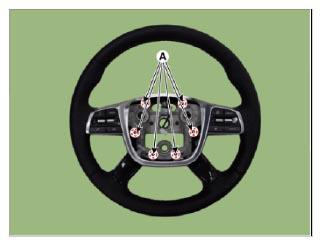

  3. Remove the Steering Wheel Remote Control (SWRC) switch and bezel after removing the screws (A).
    G15710086Courtesy of KIA MOTORS AMERICA, INC.

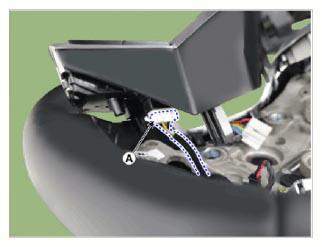

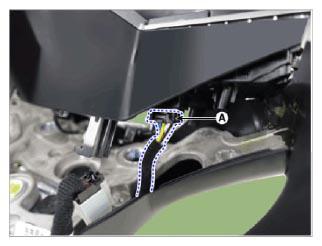

  4. Disconnect the SWRC switch connectors (A).
    G15710087Courtesy of KIA MOTORS AMERICA, INC.
    G15710088Courtesy of KIA MOTORS AMERICA, INC.

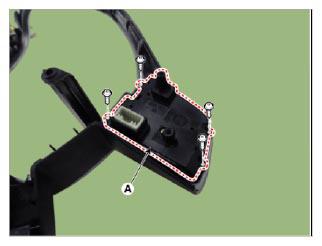

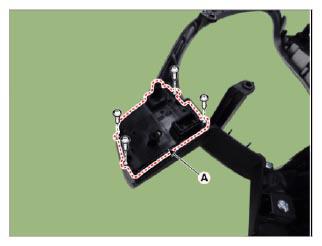

  5. Remove the SWRC (A) switches after removing the screws.
G15710089Courtesy of KIA MOTORS AMERICA, INC.
G15710090Courtesy of KIA MOTORS AMERICA, INC.
